Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2000
>>
Protege LX L4-1.6L DOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P0500
>>
Engine Control System
Engine Control System

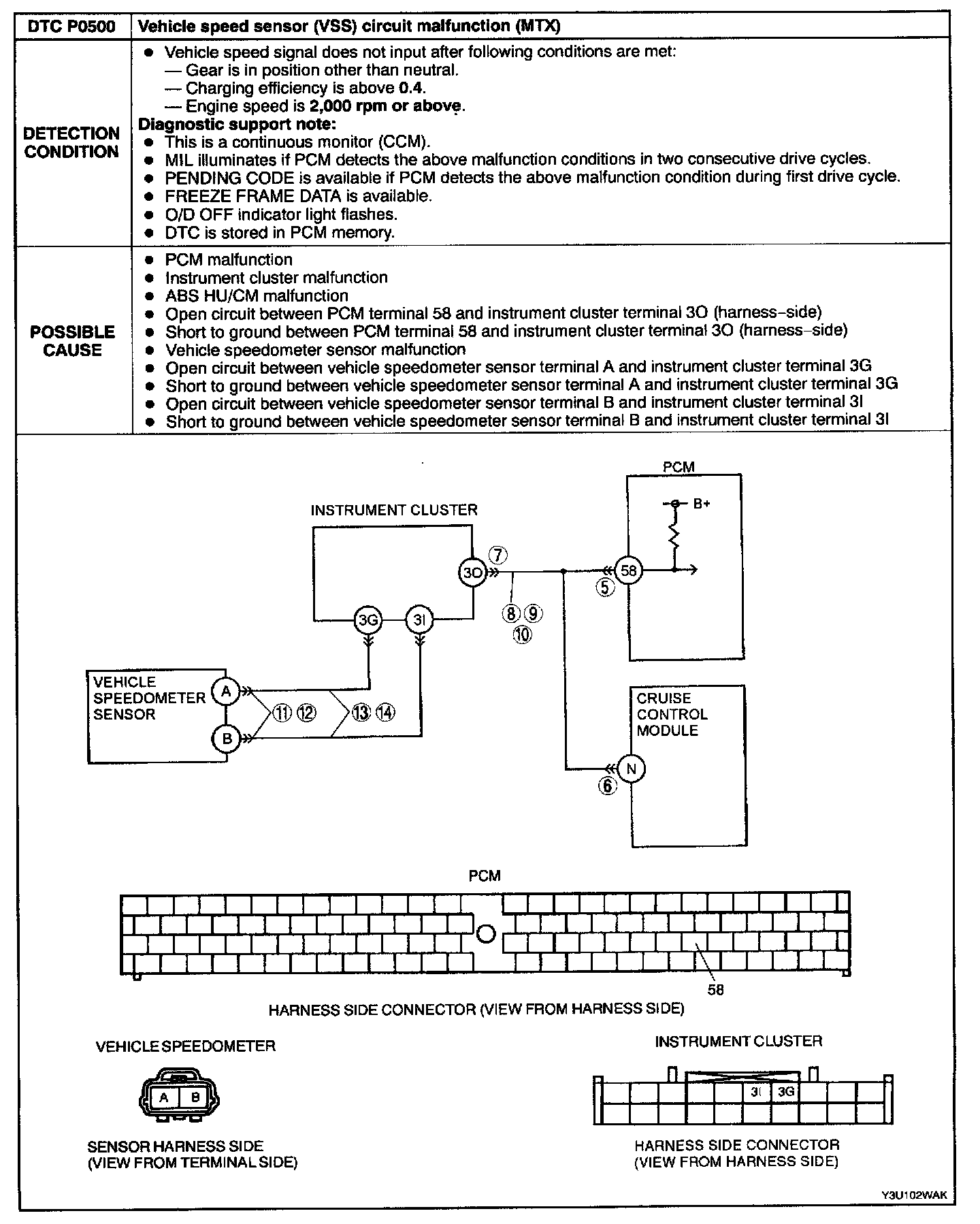

Detection Condition:

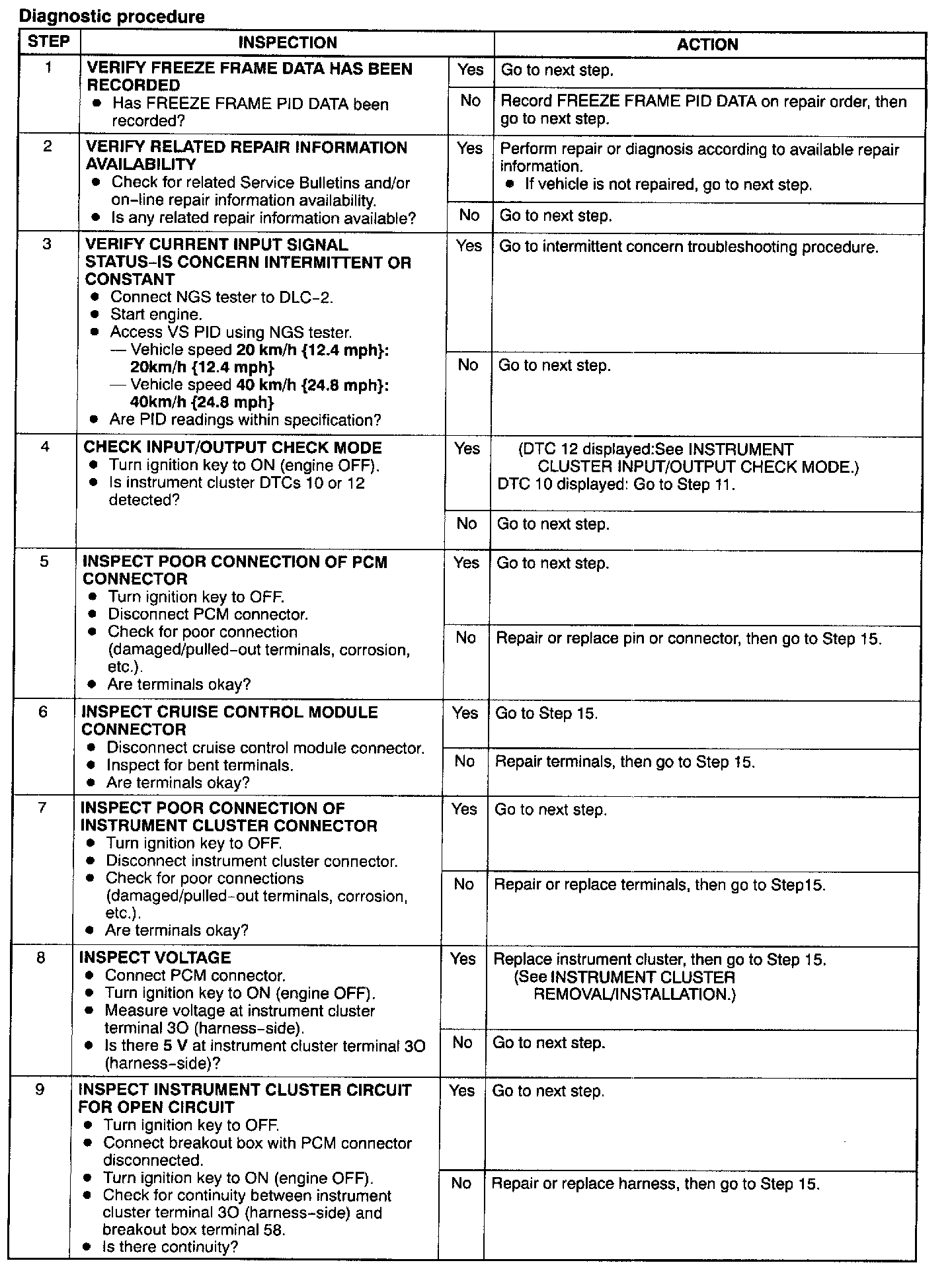

Diagnostic Procedure (Steps 1 - 9):

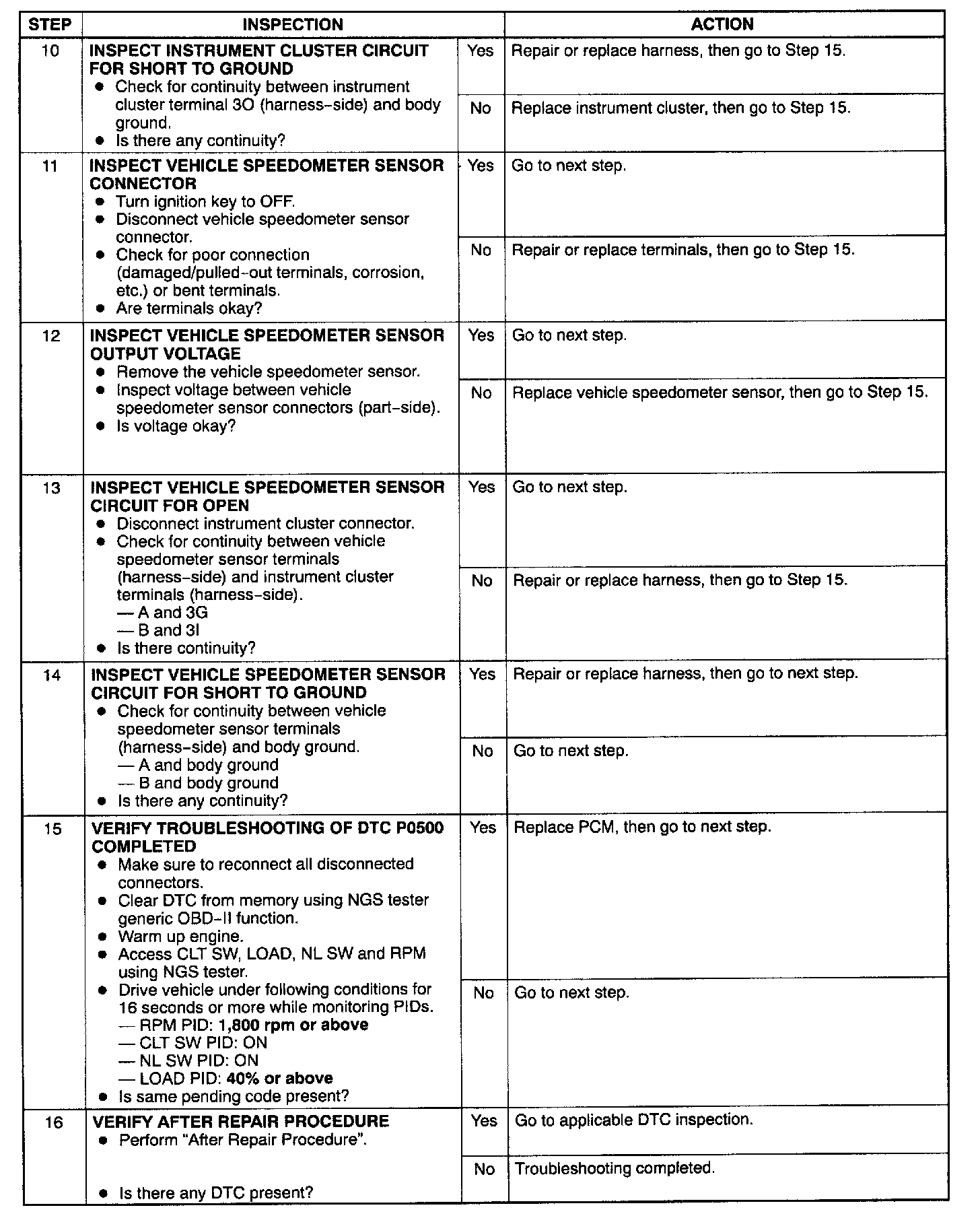

Diagnostic Procedure (Steps 10 - 16):
