P0500
>>
Transmission Control System
Transmission Control System

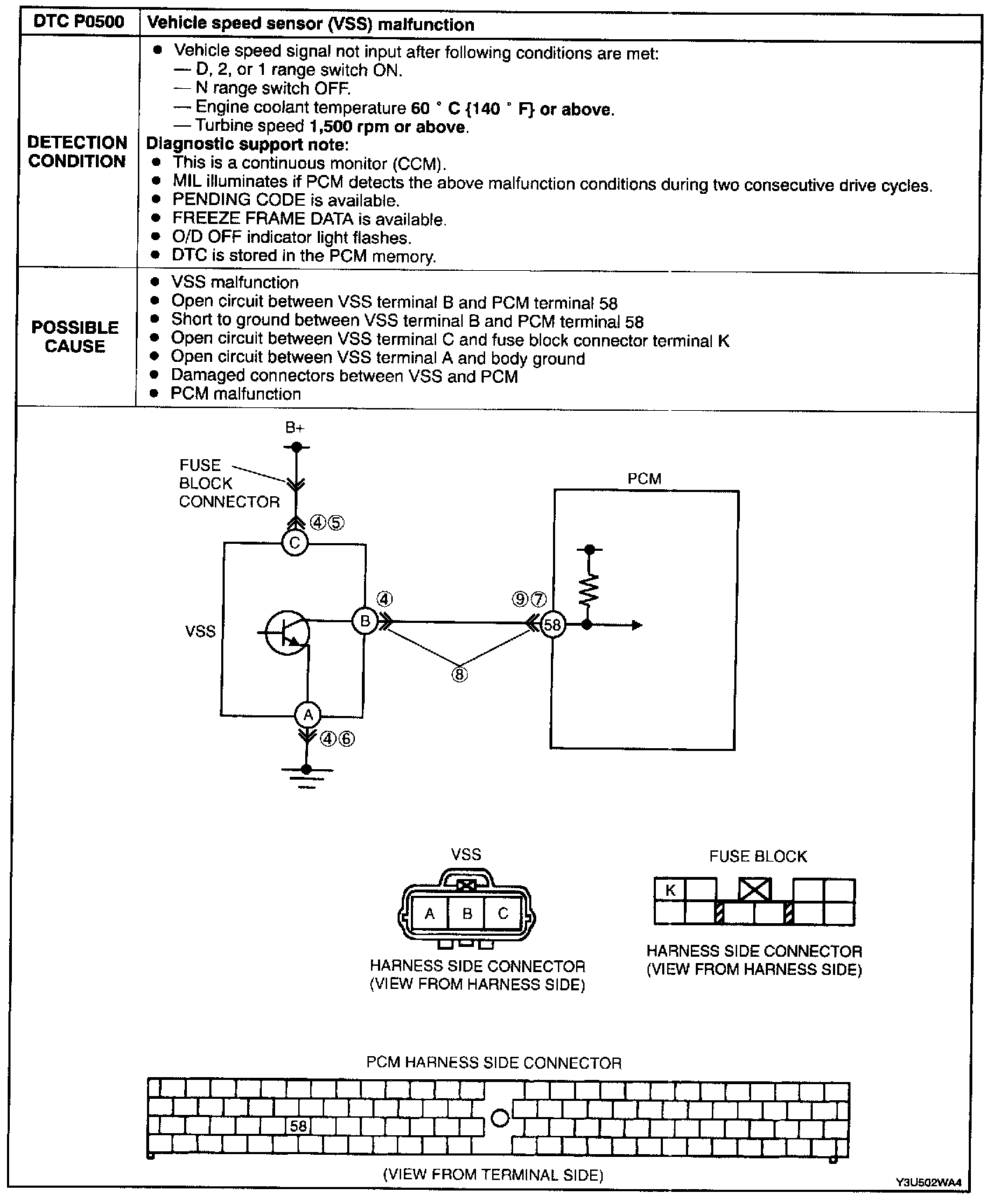

DTC P0500
Diagnostic Procedure

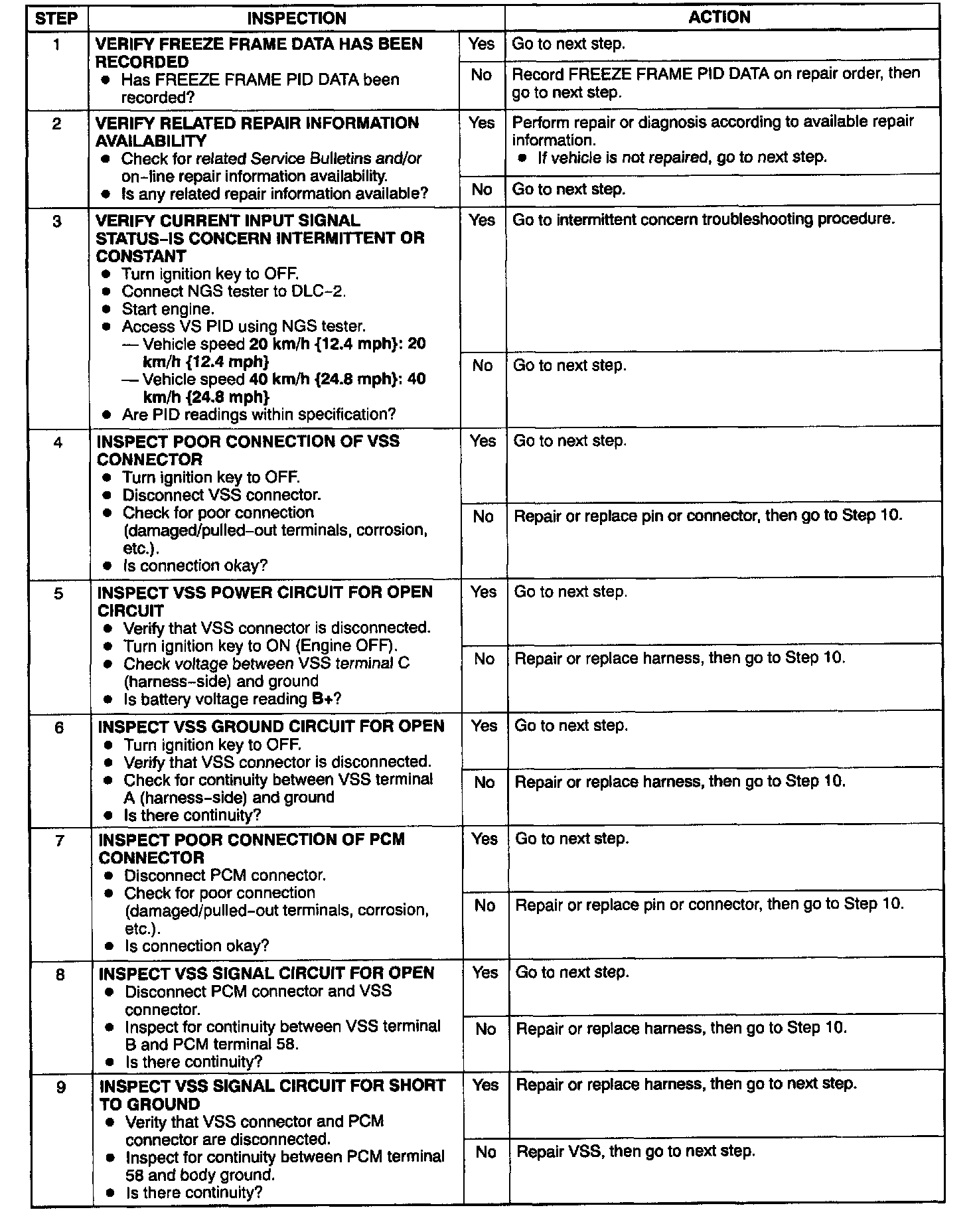

Step 1 - 9

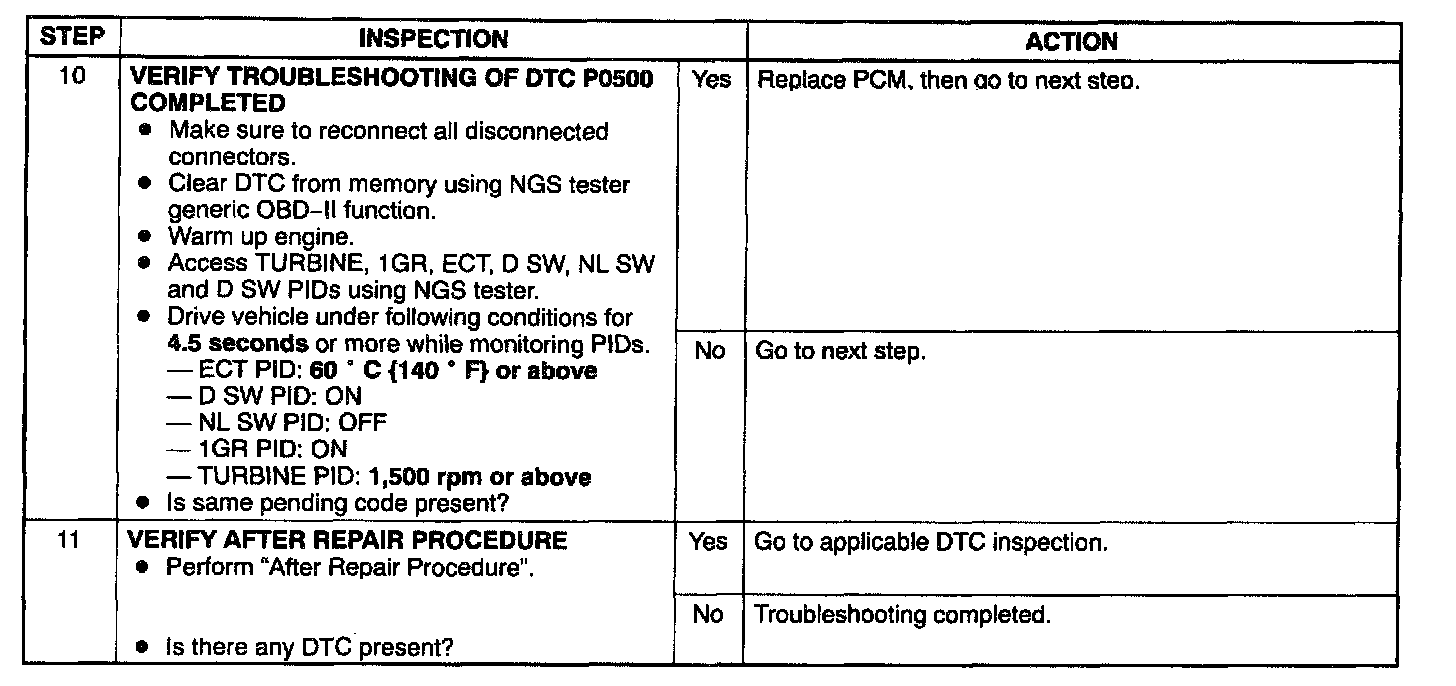

Step 10 - 11
