ABS SYMPTOM TROUBLESHOOTING
^

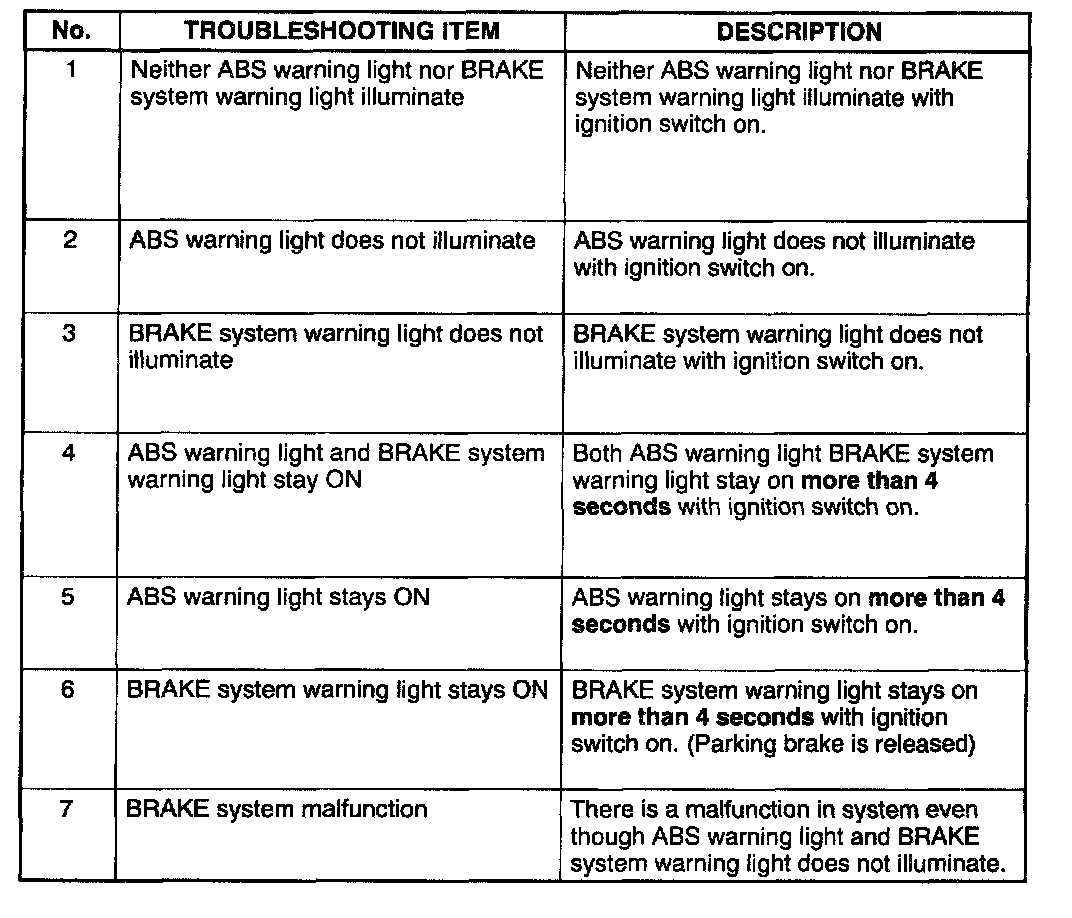

Verify the symptom, and perform troubleshooting according to the appropriate number.

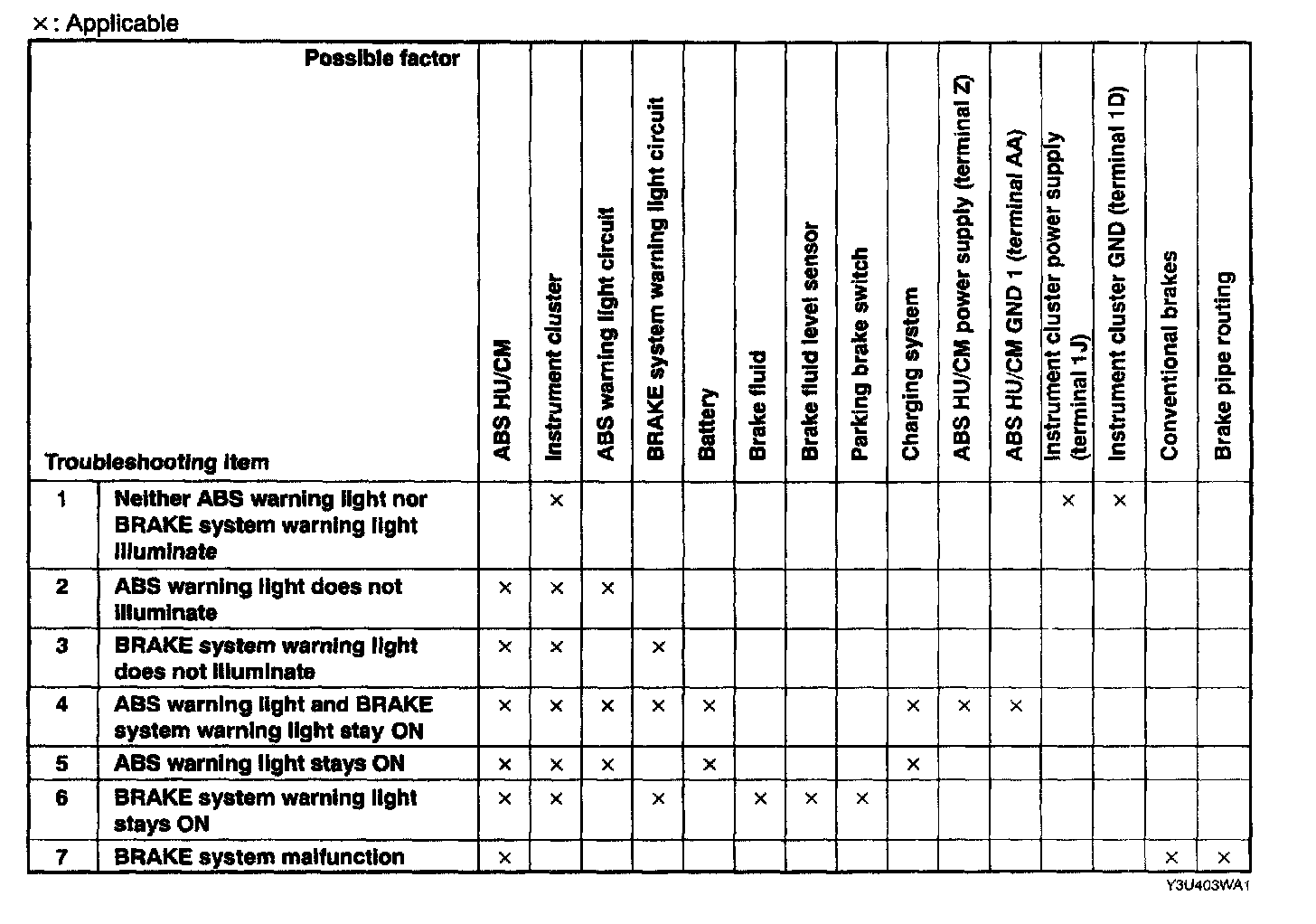

Quick Diagnosis Chart - Vehicles With ABS
