Home >> Mazda >> 2000 >> Protege LX L4-1.6L DOHC >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Impact Sensor >> Testing and Inspection >> 25 Drivers Side Air Bag Sensor System (Communication Error)

25 Drivers Side Air Bag Sensor System (Communication Error)

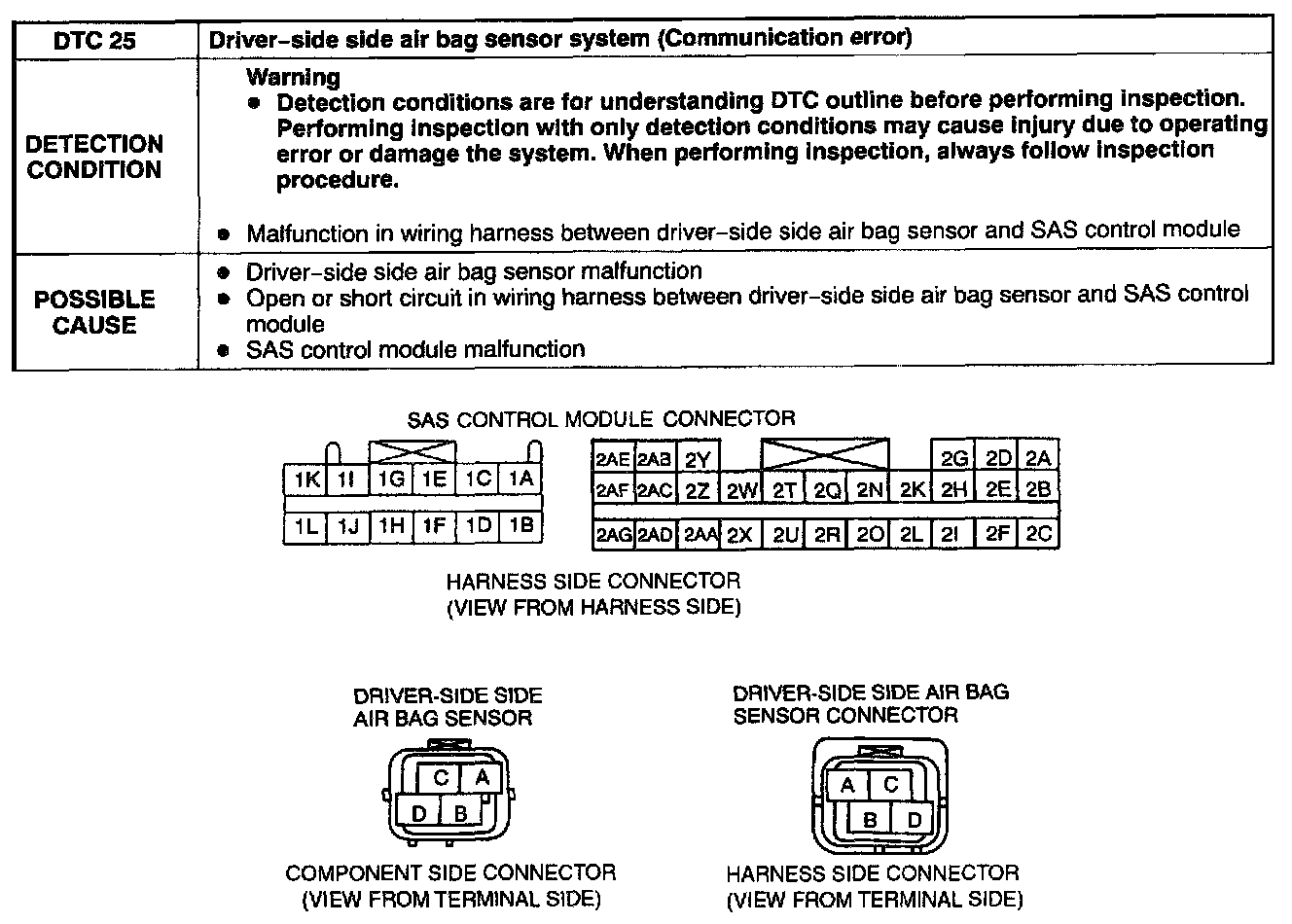

DTC 25:

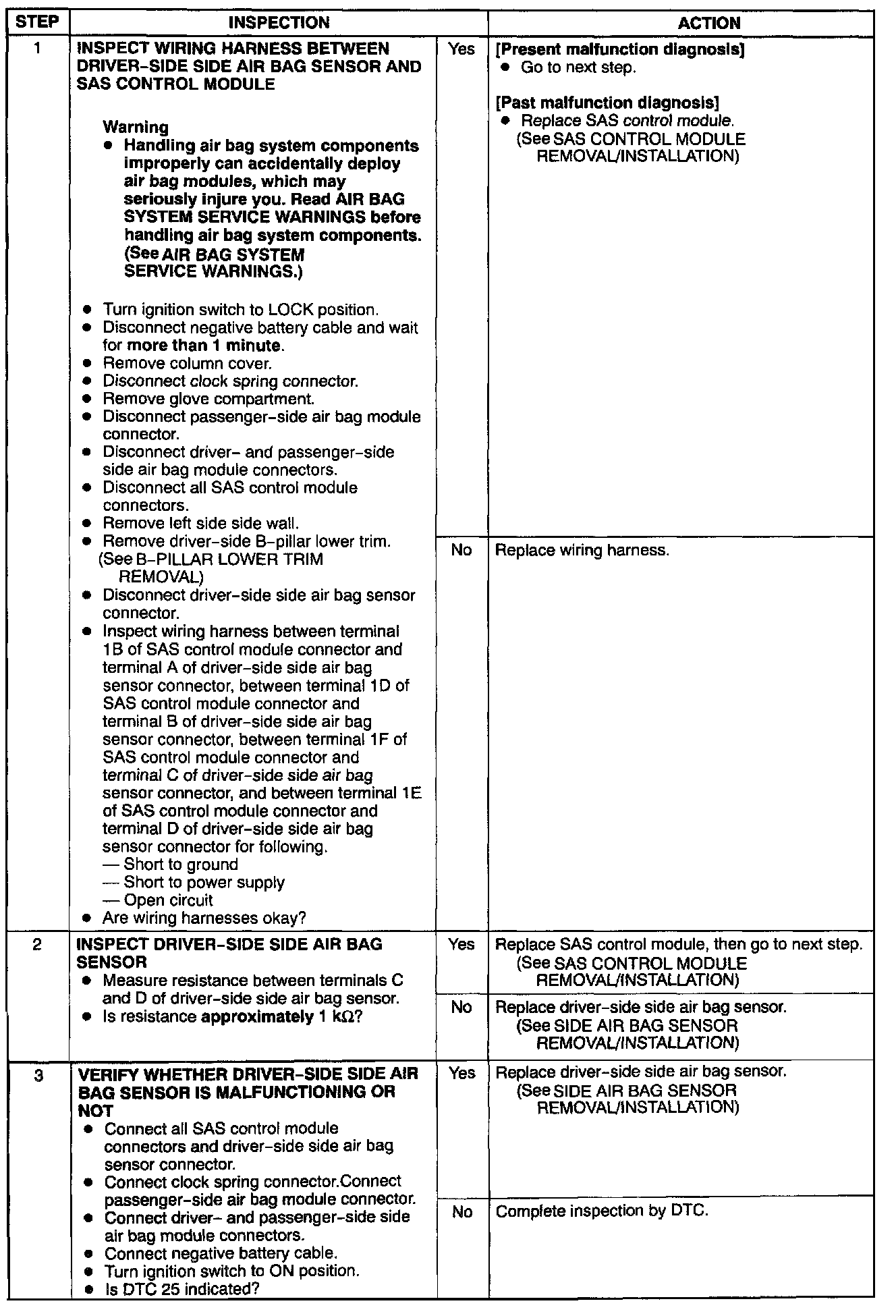

DTC 25 (Steps 1 - 3):
