11 SAS Control Module and Driver Side Air Bag Module System
11 SAS Control Module and Driver Side Air Bag Module System

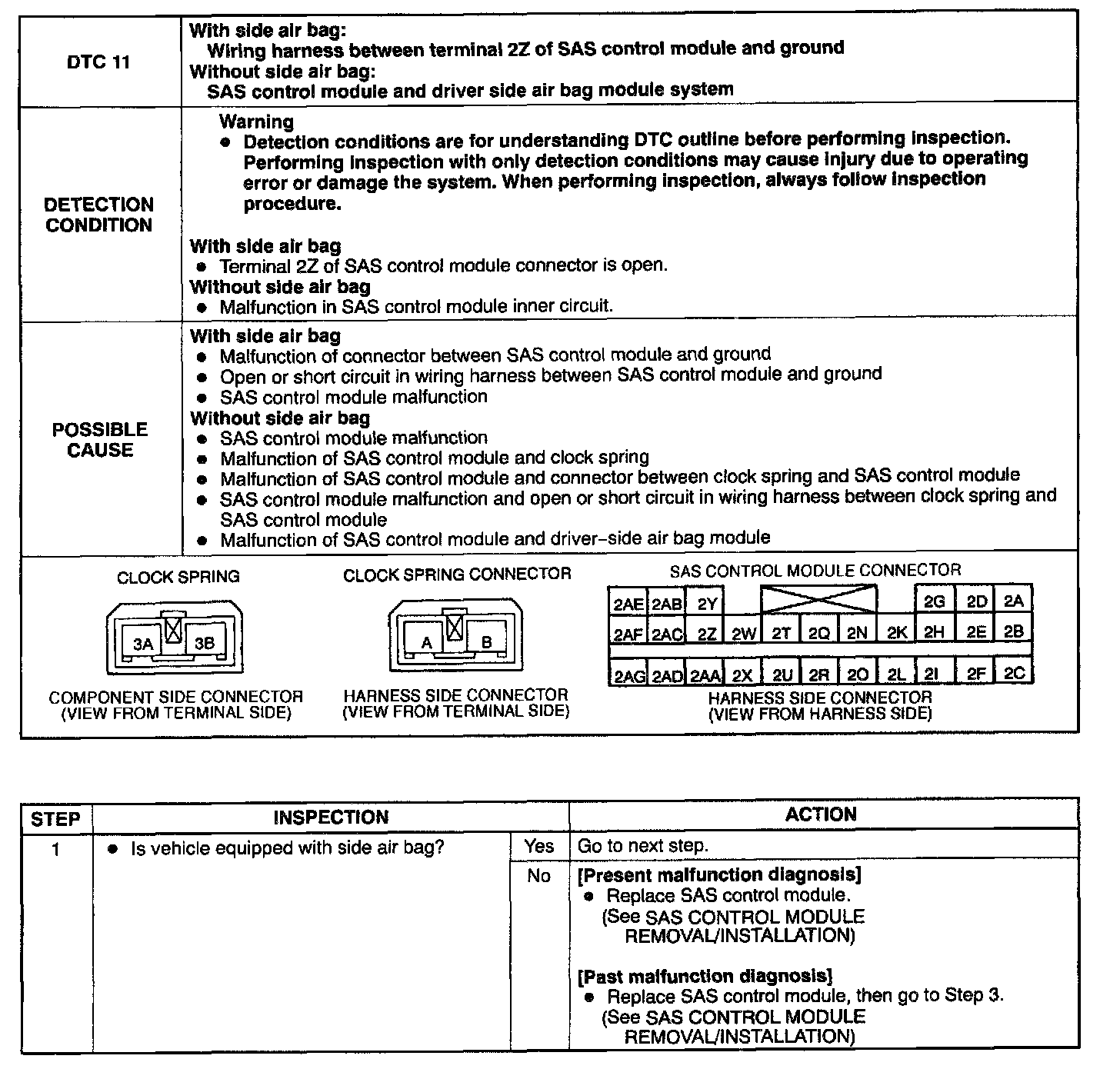

DTC 11 (Step 1):

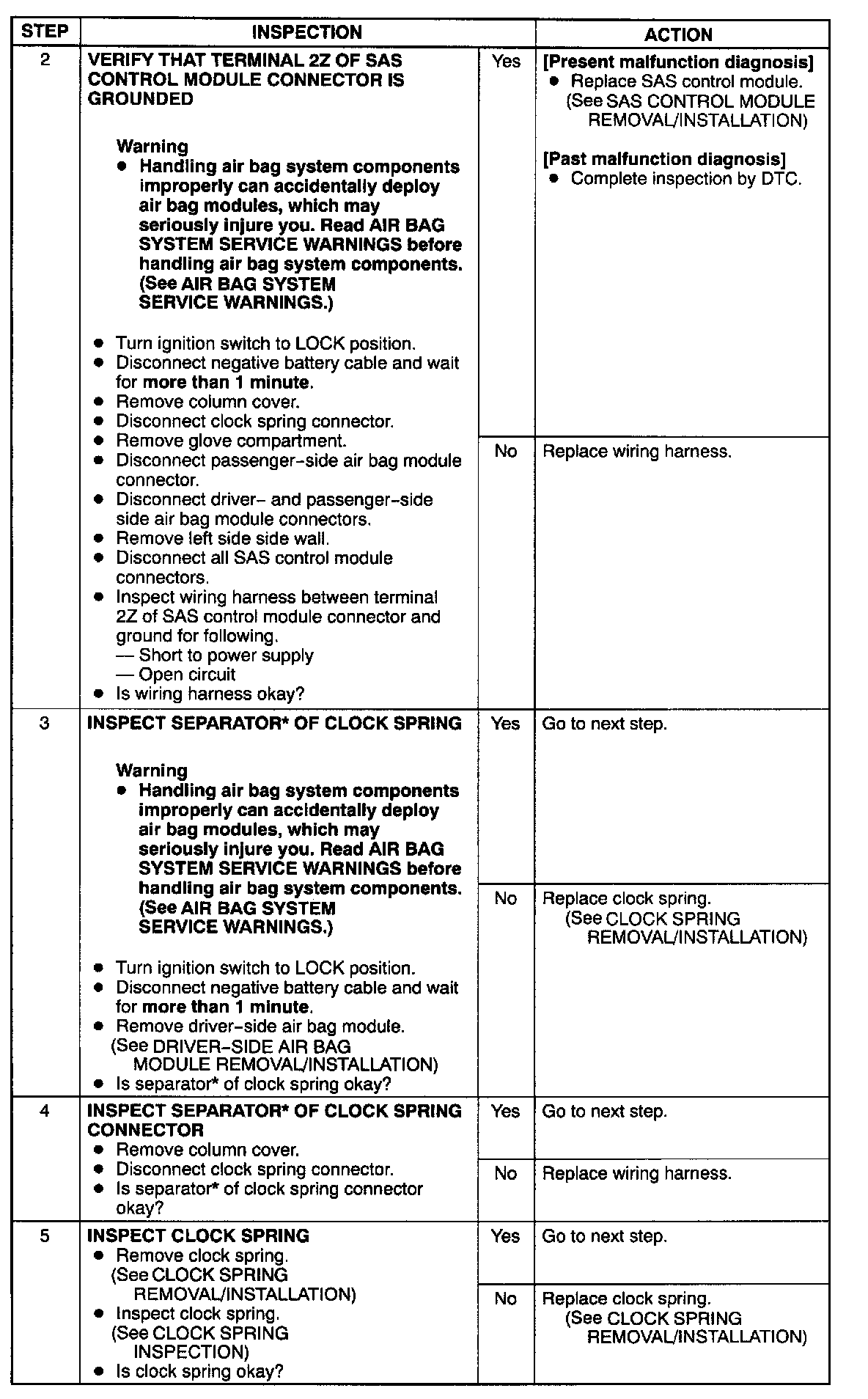

DTC 11 (Steps 2 - 5):

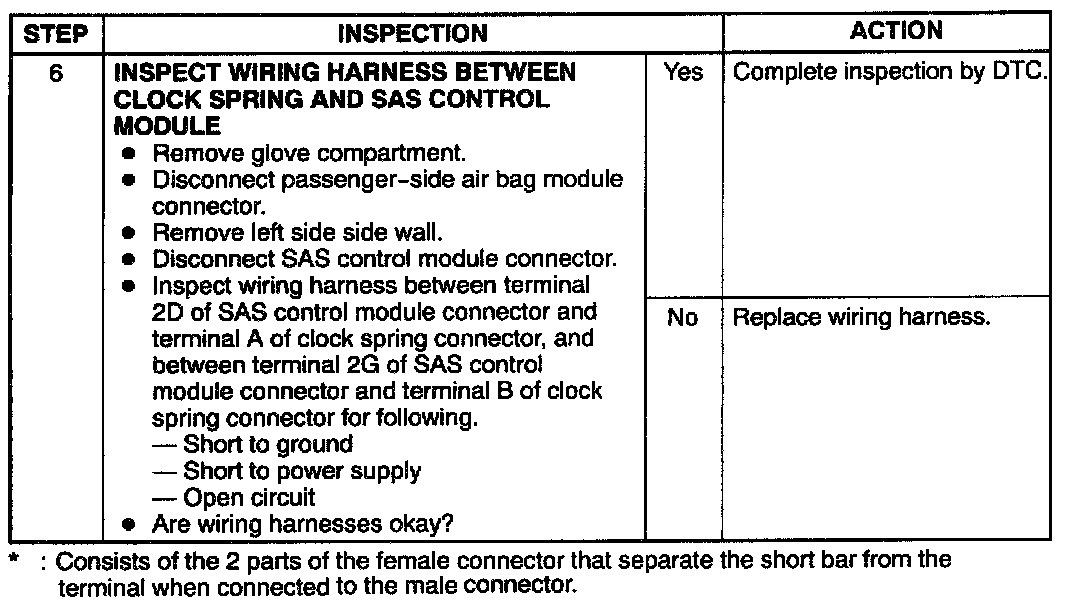

DTC 11 (Step 6):
