12 SAS Control Module and Passenger Side Air Bag Module System
12 SAS Control Module and Passenger Side Air Bag Module System

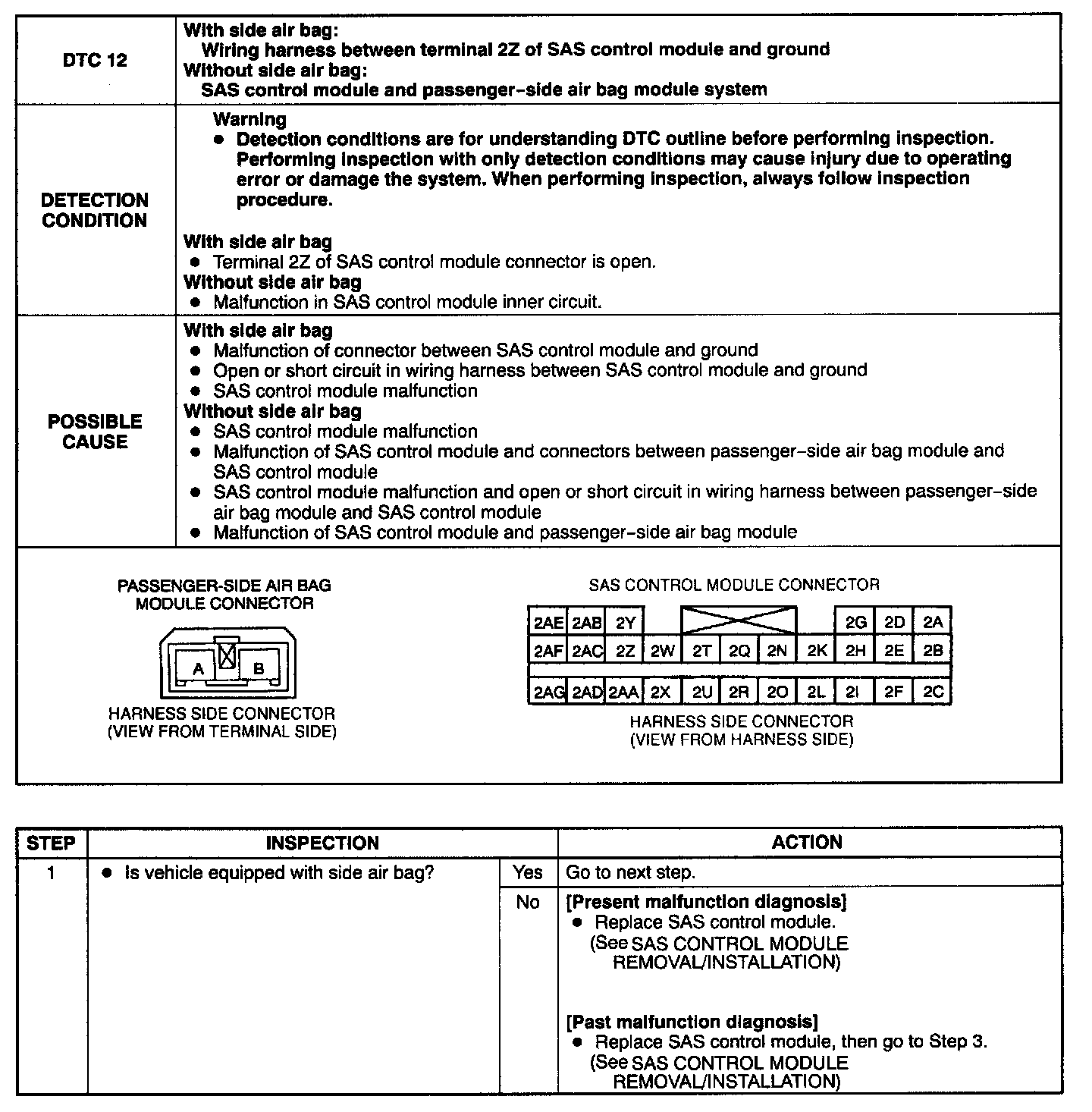

DTC 12 (Step 1):

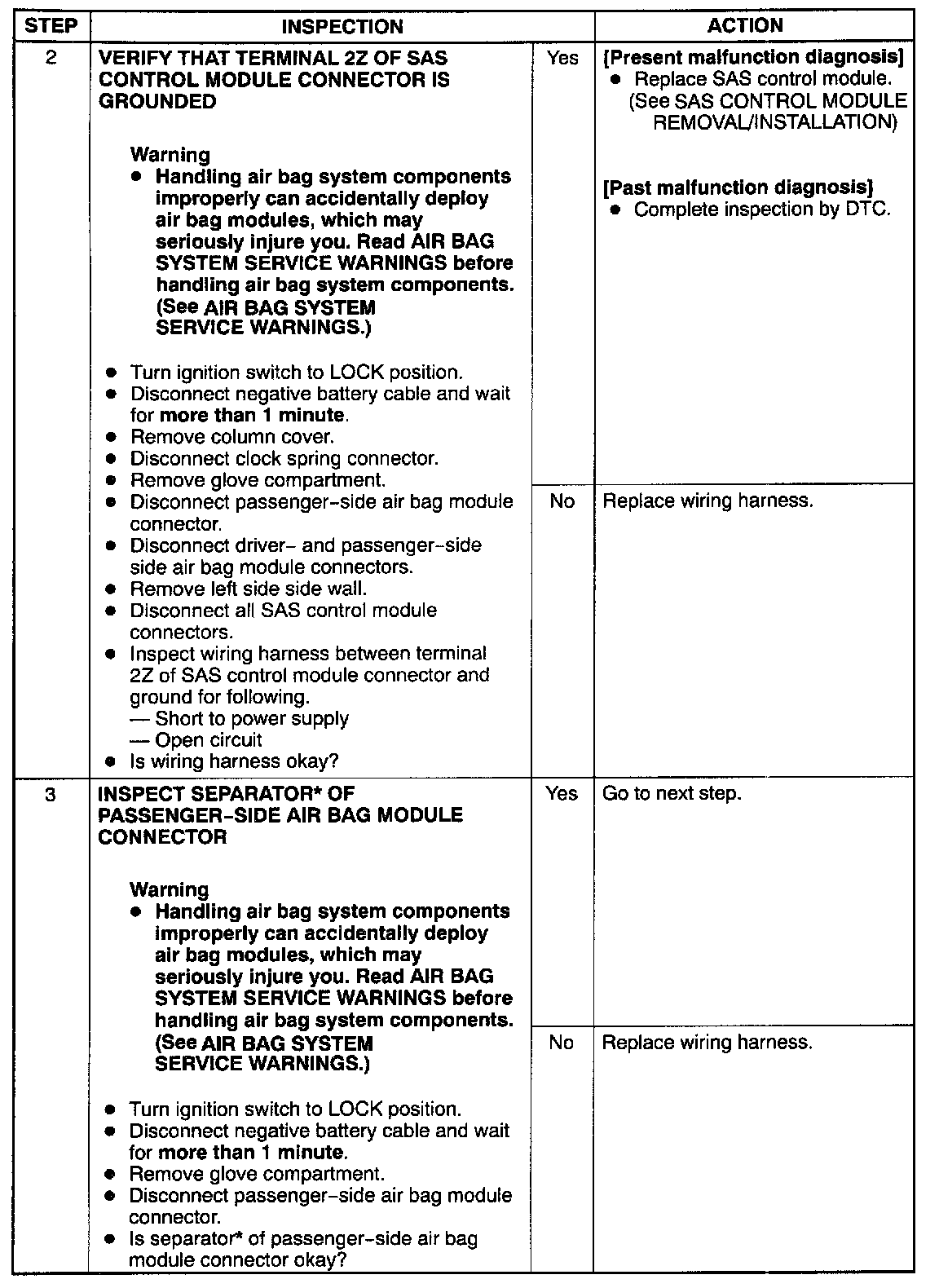

DTC 12 (Steps 2 And 3):

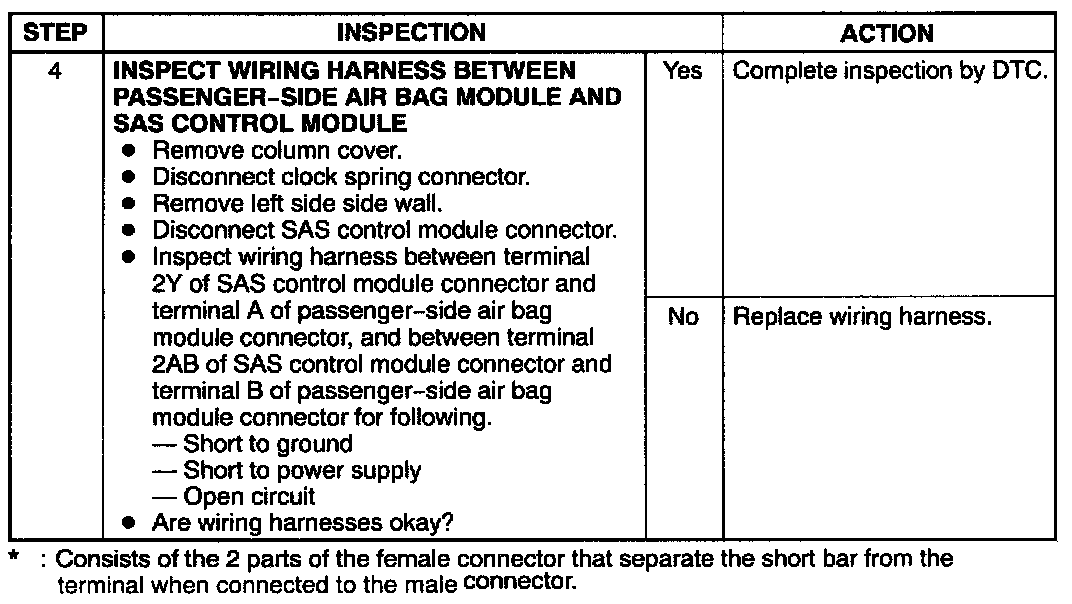

DTC 12 (Step 4):
