Off-Vehicle

SOLENOID VALVES INSPECTION
Resistance Inspection (Off-vehicle)
1. Remove the control valve body.
2. Remove the solenoid valve(s).

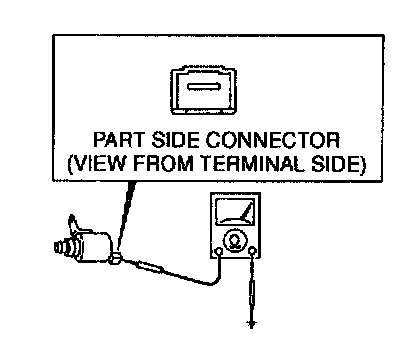

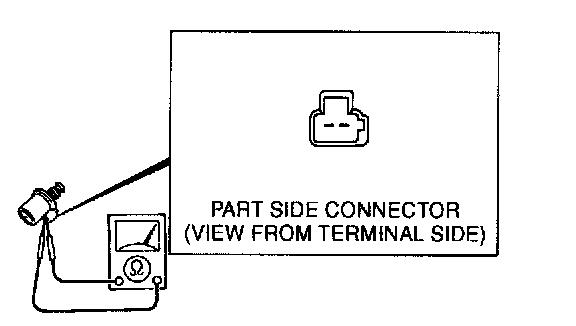

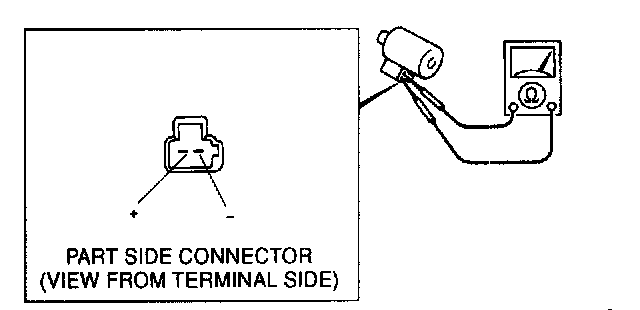

3. Measure the resistance of each solenoid valve individually.
- If not as specified, replace the solenoid valve.
Pressure control solenoid
Resistance: 2.4 - 7.3 ohms





Shift solenoid A, B, C
Resistance: 1.0 - 4.2 ohms





Shift solenoid D, E
Resistance: 10.9 - 26.2 ohms
4. Install the solenoid valve(s).
5. Install the control valve body.
