Power Seat Motor: Testing and Inspection

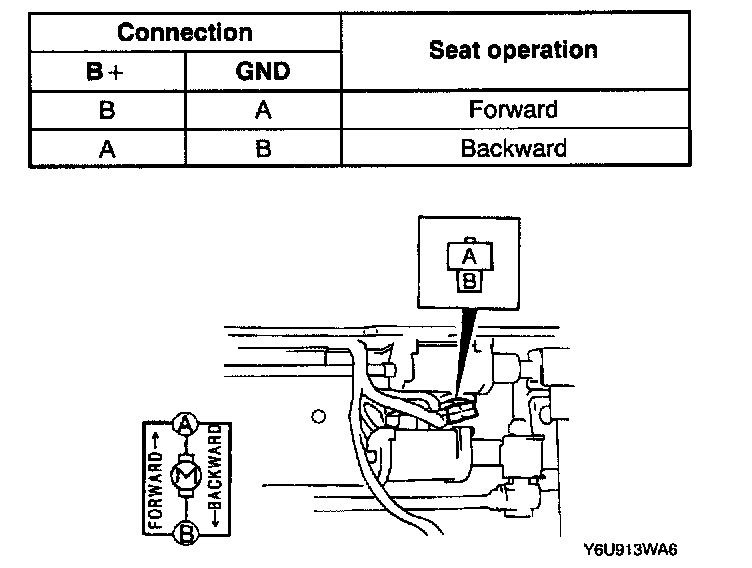

SLIDE MOTOR INSPECTION
1. Remove the front seat.




2. Disconnect the slide motor connector, and check operation of the seat when battery positive voltage is applied to the terminals as shown.
- If not as specified, replace the slide motor.

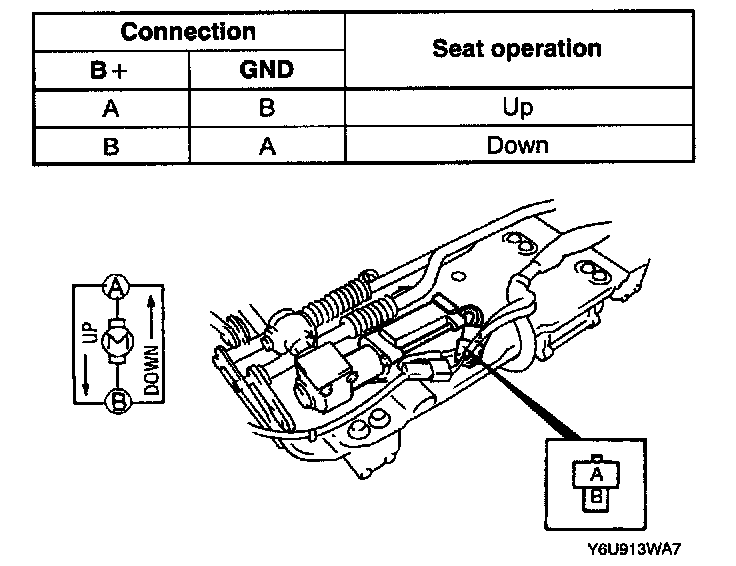

FRONT TILT MOTOR INSPECTION

1. Remove the front seat.




2. Disconnect the front tilt motor connector, and check operation of the seat when battery positive voltage is applied to the terminals as shown.
- If not as specified, replace the front tilt motor.

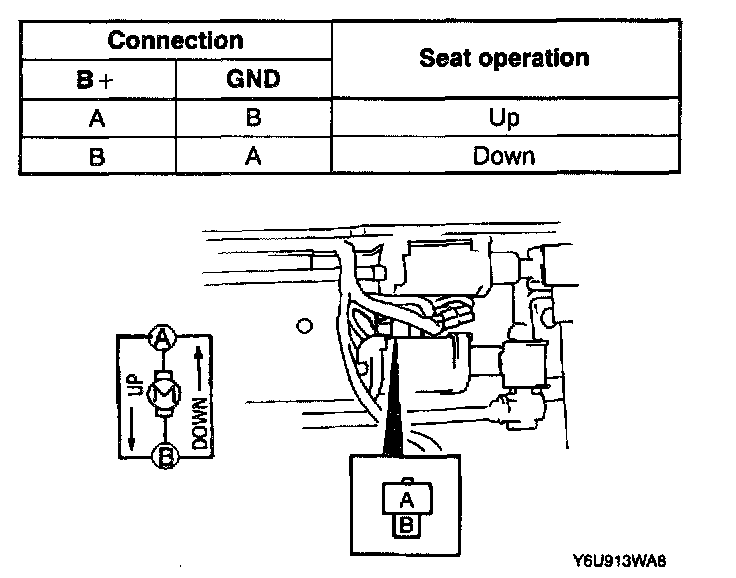

REAR TILT MOTOR INSPECTION

1. Remove the front seat.




2. Disconnect the rear tilt motor connector, and check operation of the seat when battery positive voltage is applied to the terminals as shown.
- If not as specified, replace the rear tilt motor.
