Automatic Transmission/Transaxle
>>
System Schematic
>>
Without Immobilizer System
Without Immobilizer System
WITHOUT IMMOBILIZER SYSTEM

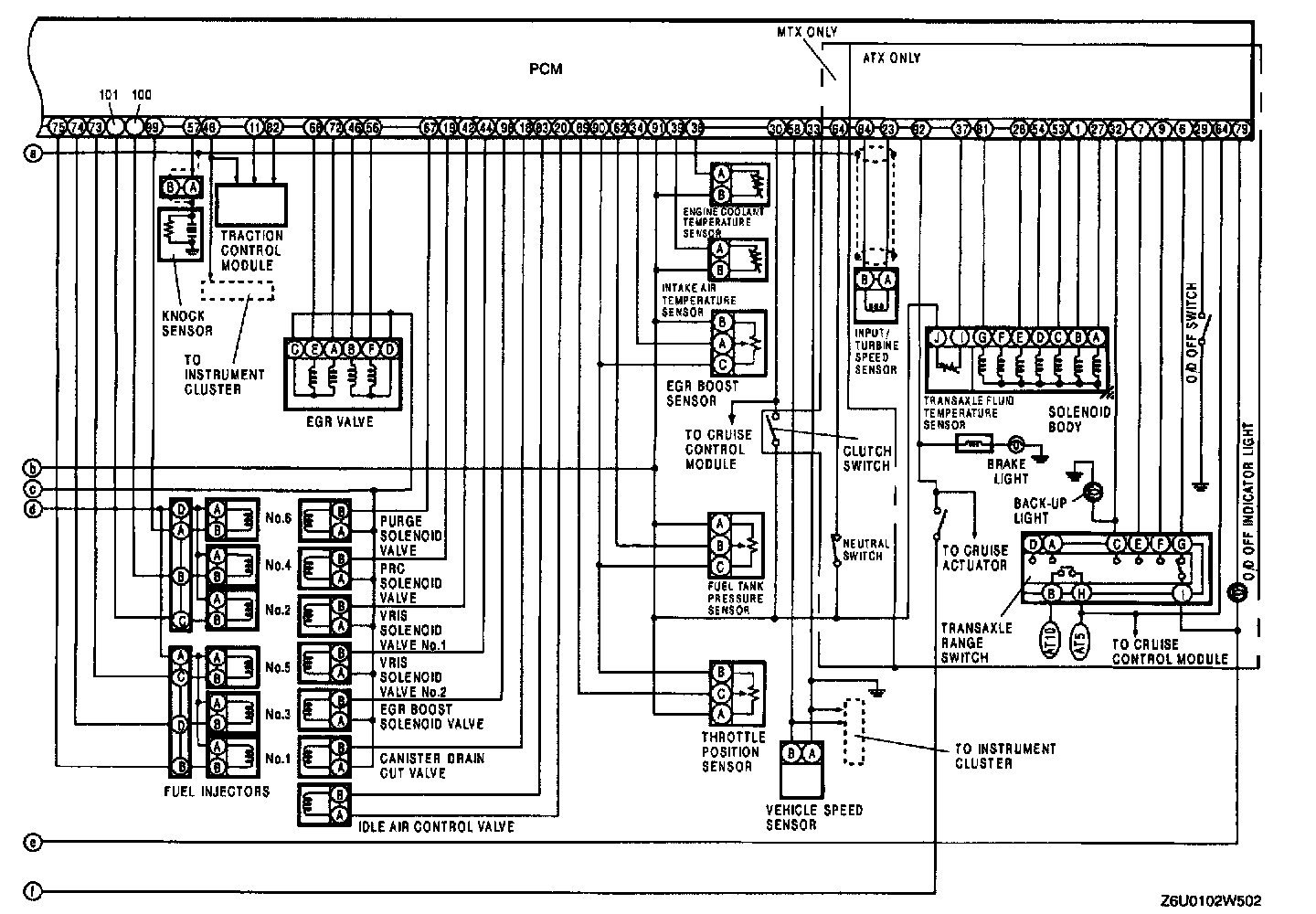

1 of 2

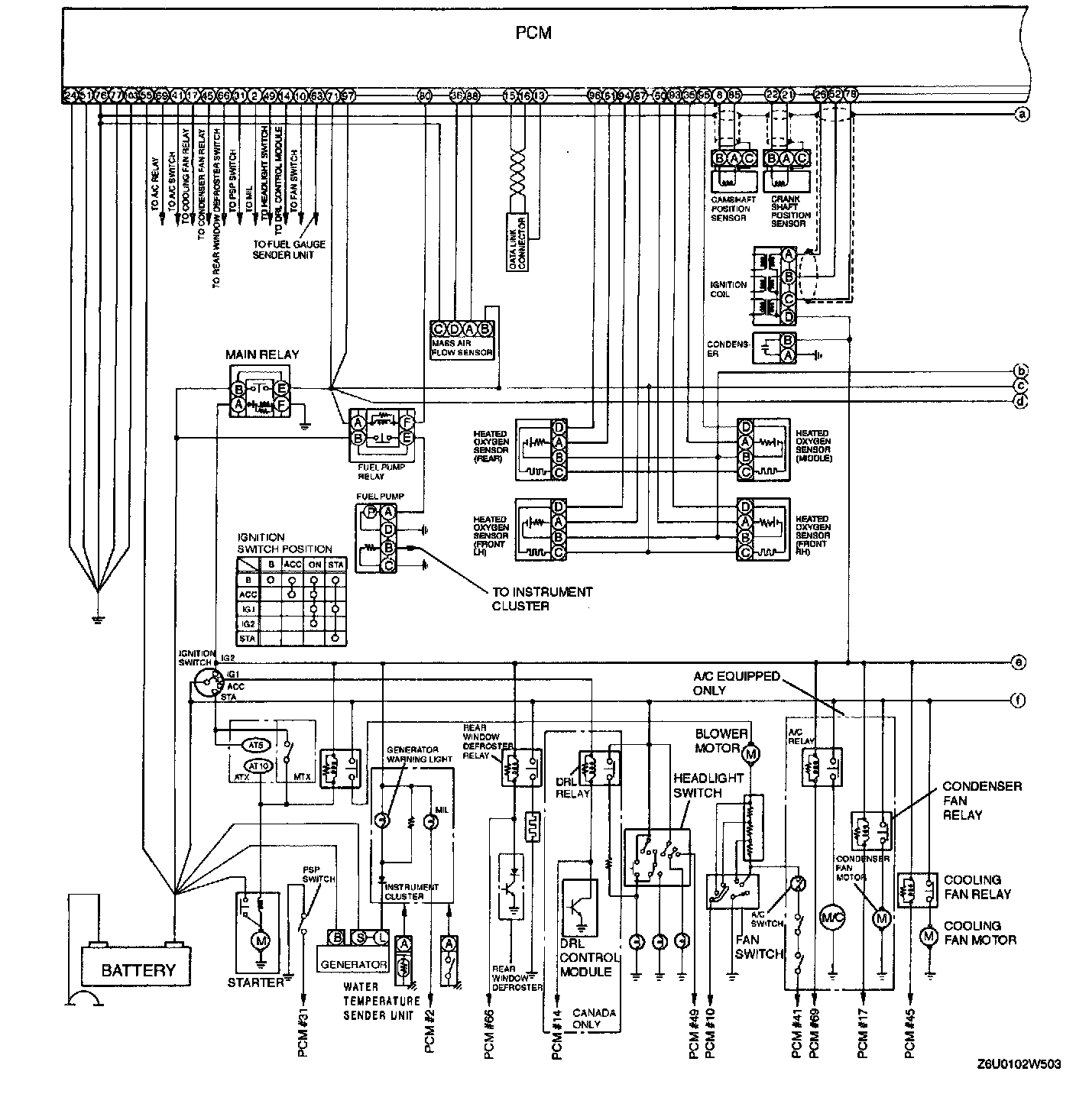

2 of 2
