Blower Unit Removal and Installation

1. Disconnect the negative battery cable.
2. Remove the cooling unit.

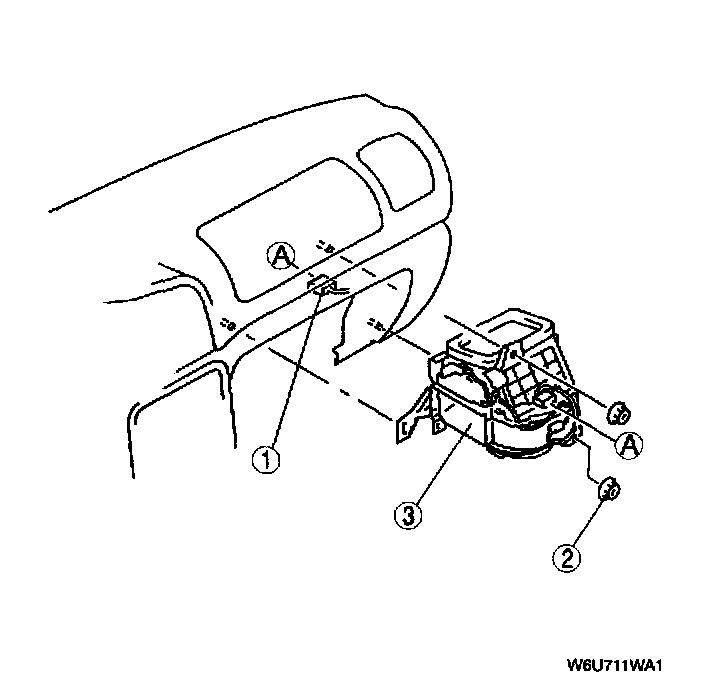

3. Remove in the order as indicated below.
1. Connector
2. Nut
3. Blower unit

4. Install in the reverse order of removal.
