Tail Lamp: Service and Repair

1. Disconnect the negative battery cable.
2. Partially peel off the trunk compartment covering.

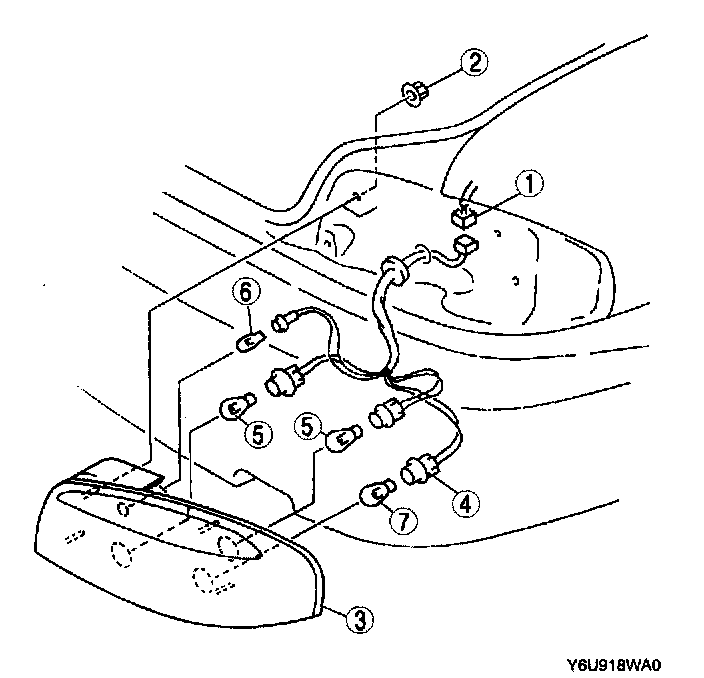

3. Remove in the order as indicated below.
1. Connector
2. Nut
3. Rear combination light
4. Socket
5. Brake light/tail light bulb
6. Back-up light bulb
7. Rear turn light bulb

4. Install in the reverse order of removal.
