Accelerator Pedal: Service and Repair

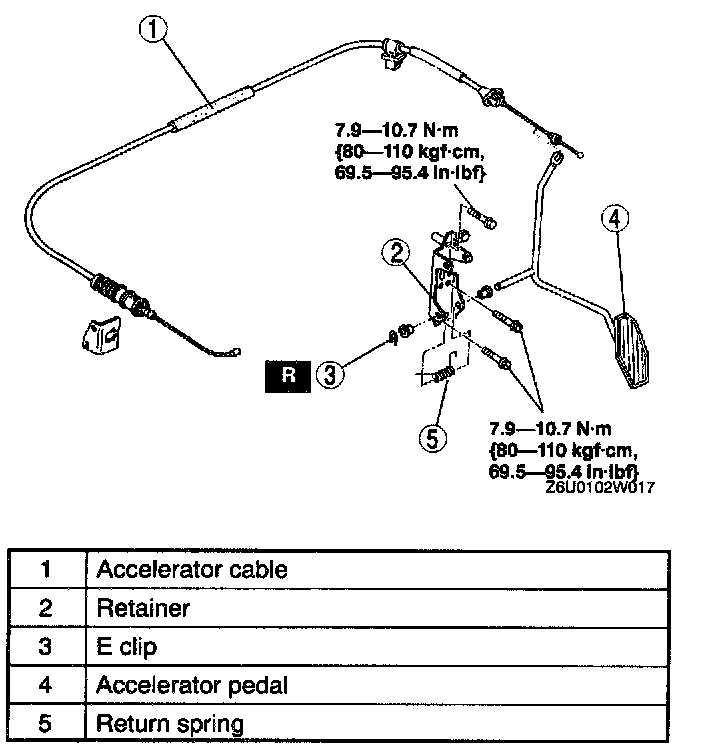

Without Cruise Control
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

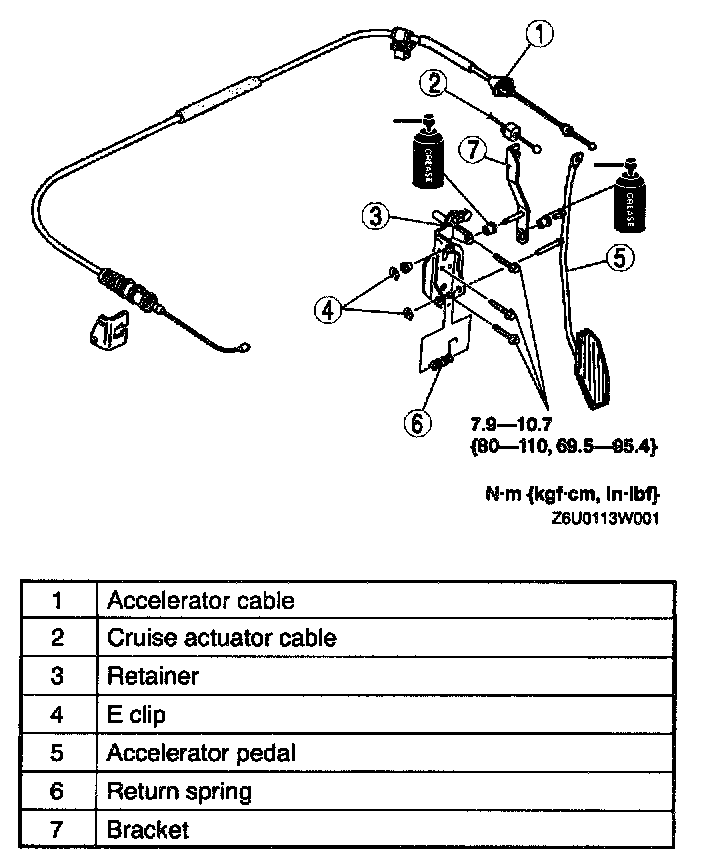

With Cruise Control
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

Accelerator Cable Installation Note
Carry out the "ACCELERATOR CABLE ADJUSTMENT" procedure after installing the accelerator cable.
