Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2001
>>
626 LX V6-2.5L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Lighting and Horns
>>
Hazard Warning Flasher
Hazard Warning Flasher

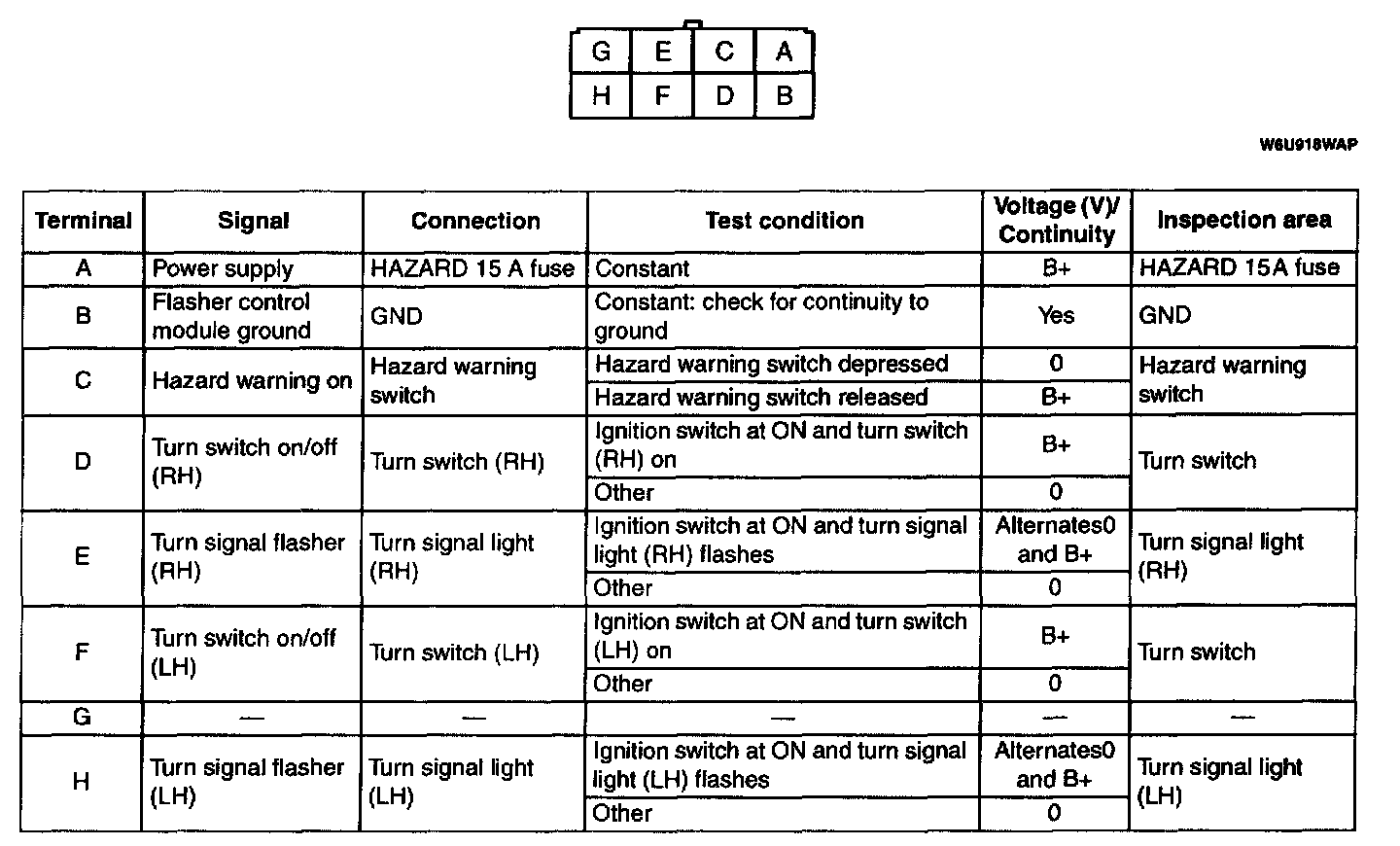

Terminals A - H:
