Blower Unit Removal and Installation

1. Disconnect the negative battery cable.
2. Remove the glove compartment.

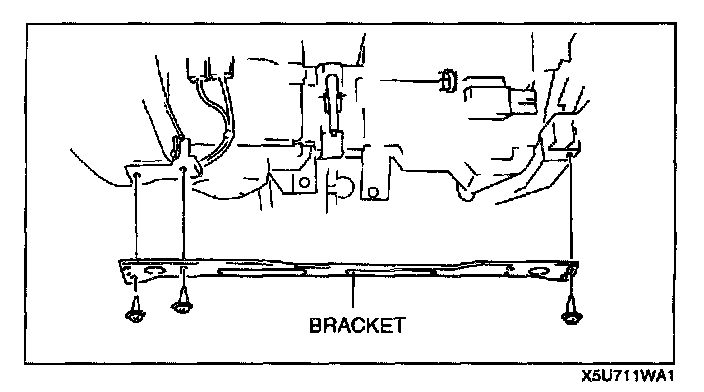

3. Remove the bracket.

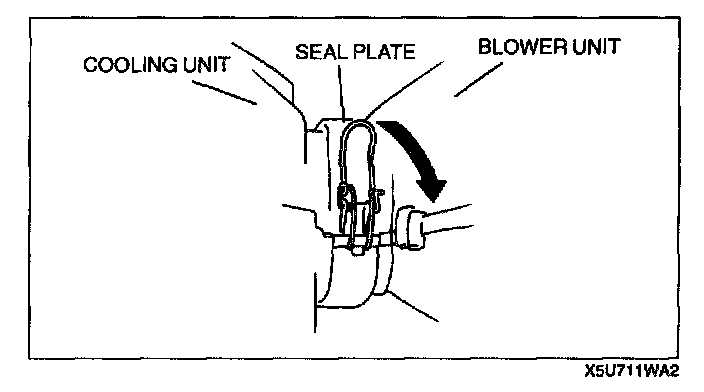

4. Remove the seal plate.

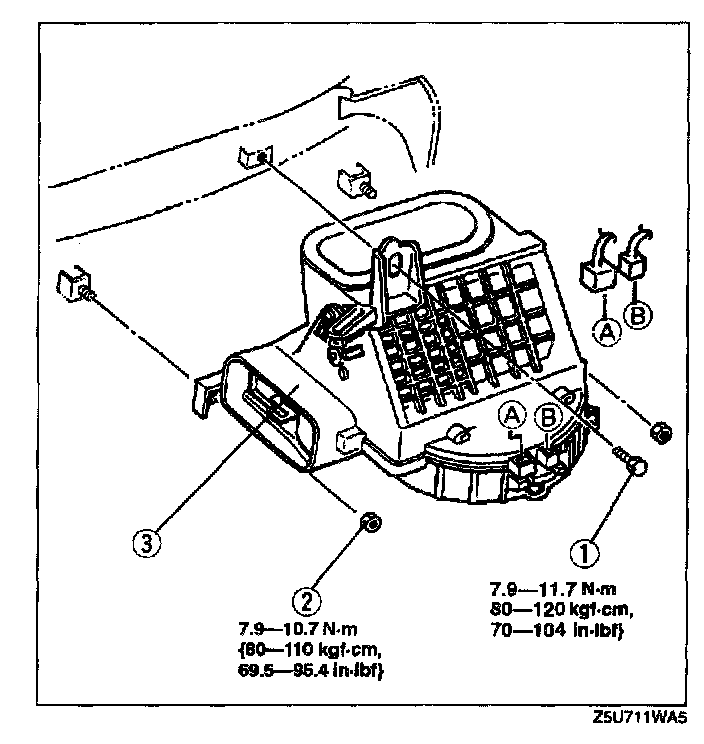

5. Remove in the order indicated.
1. Bolt
2. Nut
3. Blower unit

6. Install in the reverse order of removal.
