Power Outside Mirror

1. Disconnect the negative battery cable.

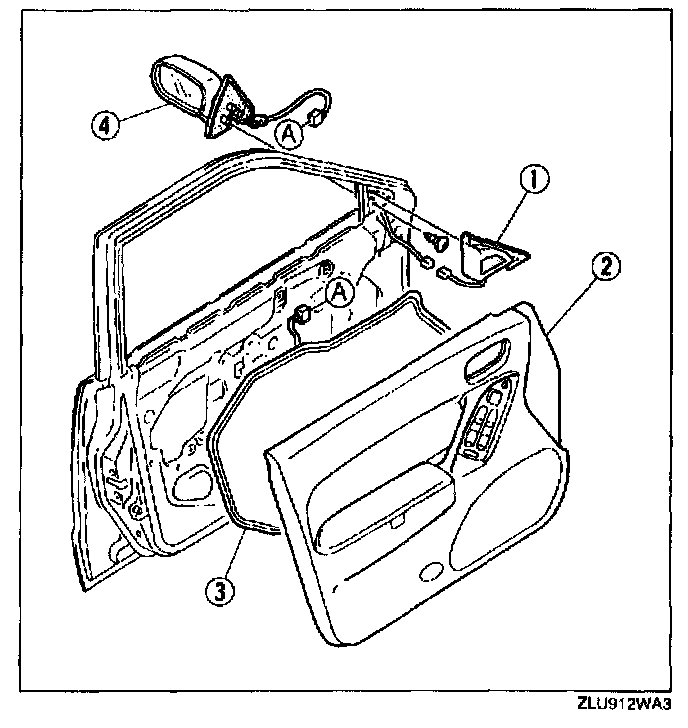

2. Remove in the order indicated below.
1. Inner garnish (See Inner Garnish Removal Note) (See Inner Garnish Installation Note)
2. Front door trim
3. Door screen (See Door Screen Removal Note)
4. Power outside mirror

3. Install in the reverse order of removal.




Inner Garnish Removal Note
Remove the clips A and locator pin B using a tape-wrapped screwdriver and remove the door inner garnish.

Door Screen Removal Note
Remove the door screen carefully so that it can be reused.

Inner Garnish Installation Note
1. Connect the tweeter connector.




2. Bend the harness using part A as a fulcrum to squeeze the connector and harness into the side of the rib.
3. Put the harness to the part B.
