Seat Back: Testing and Inspection

SEAT BACK WARMER

1. Disconnect the seat back warmer connector.

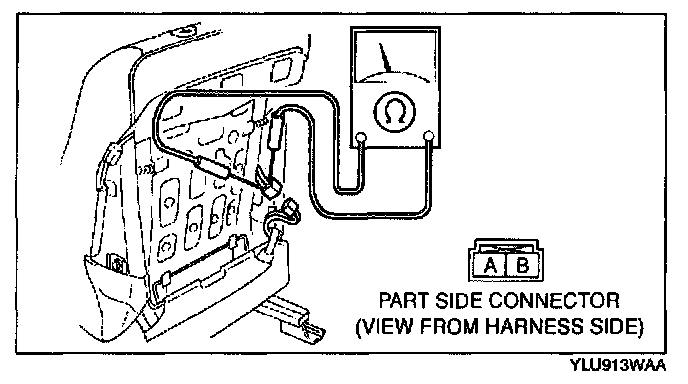

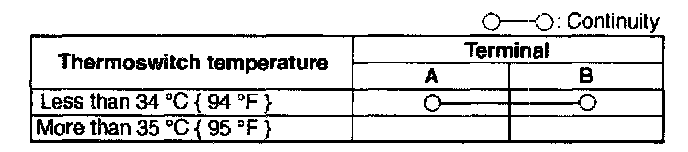

2. Warm the thermoswitch with a hot air blower and inspect for continuity between the seat back warmer terminals using an ohmmeter.
- If not as specified, replace the seat back trim.
