Radiator: Service and Repair

KL

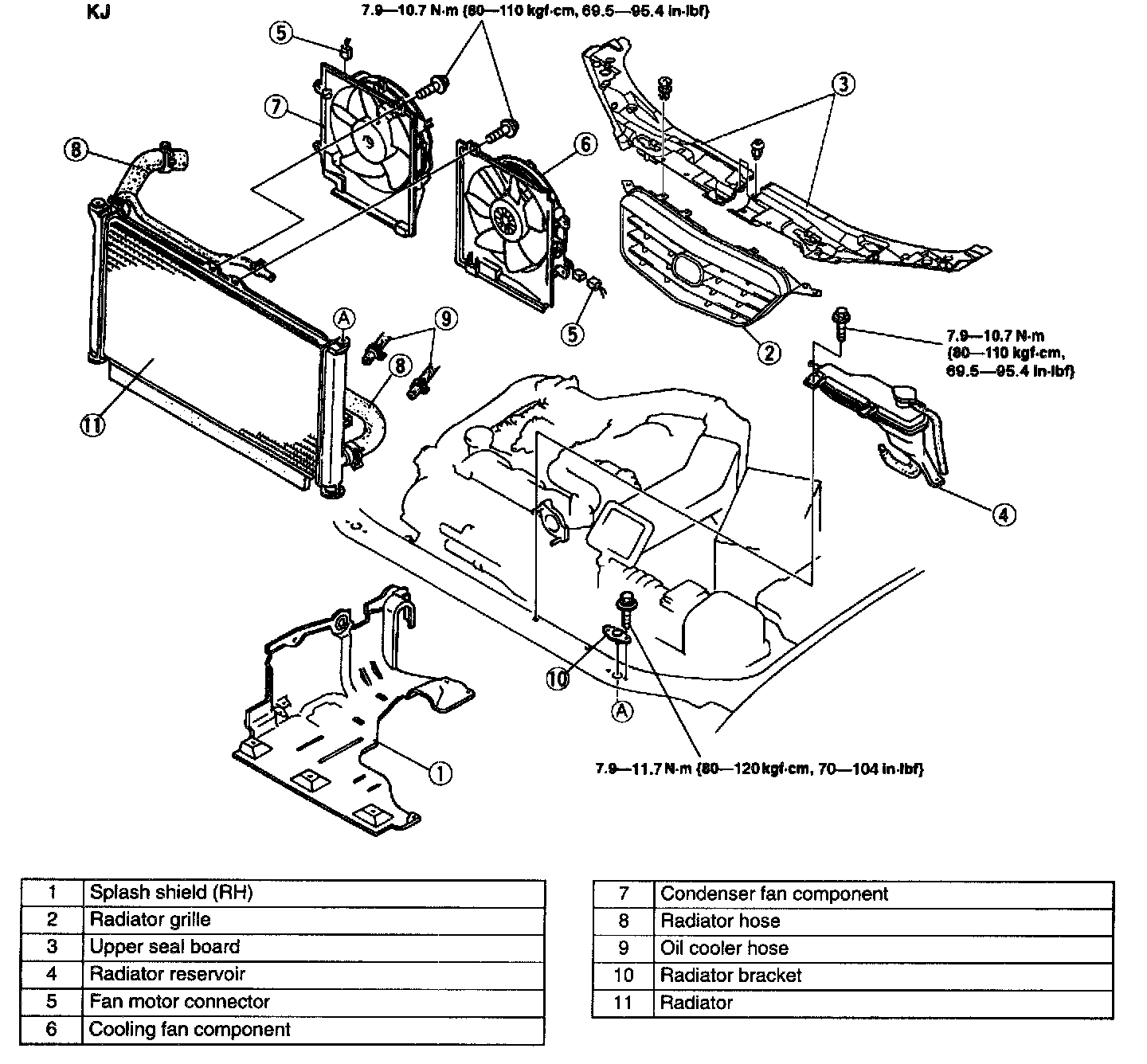

KJ

RADIATOR REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Drain the engine coolant.
3. Remove the charge air cooler. (KJ)
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Inspect the ATF level.
- Add ATF if necessary.
7. Inspect for ATF and coolant leakage.
