Cabin Air Filter / Purifier: Service and Repair

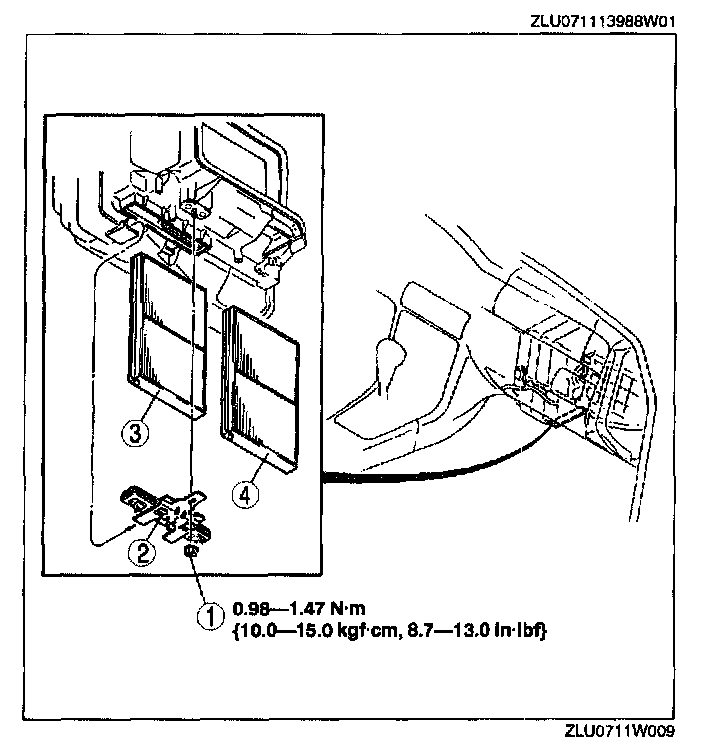

AIR FILTER REMOVAL/INSTALLATION




1. Remove in the order indicated below
1. Wing nut
2. Rubber sheet
3. Air filter (without polyurethane)
4. Air filter (with polyurethane)

2. Install in the reverse order of removal.
