Condenser Fan Motor: Testing and Inspection

CONDENSER FAN INSPECTION

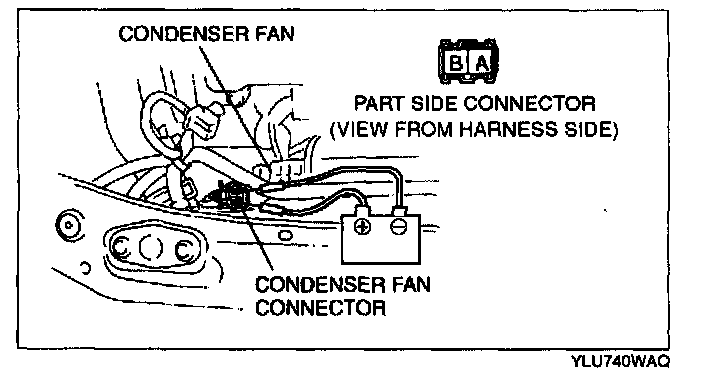

1. Disconnect the condenser tan connector.




2. Connect battery positive voltage to terminal A and ground to terminal B of the condenser fan connector (male) and verify its operation.
- If not as specified, replace the condenser fan.
