Troubleshooting Index

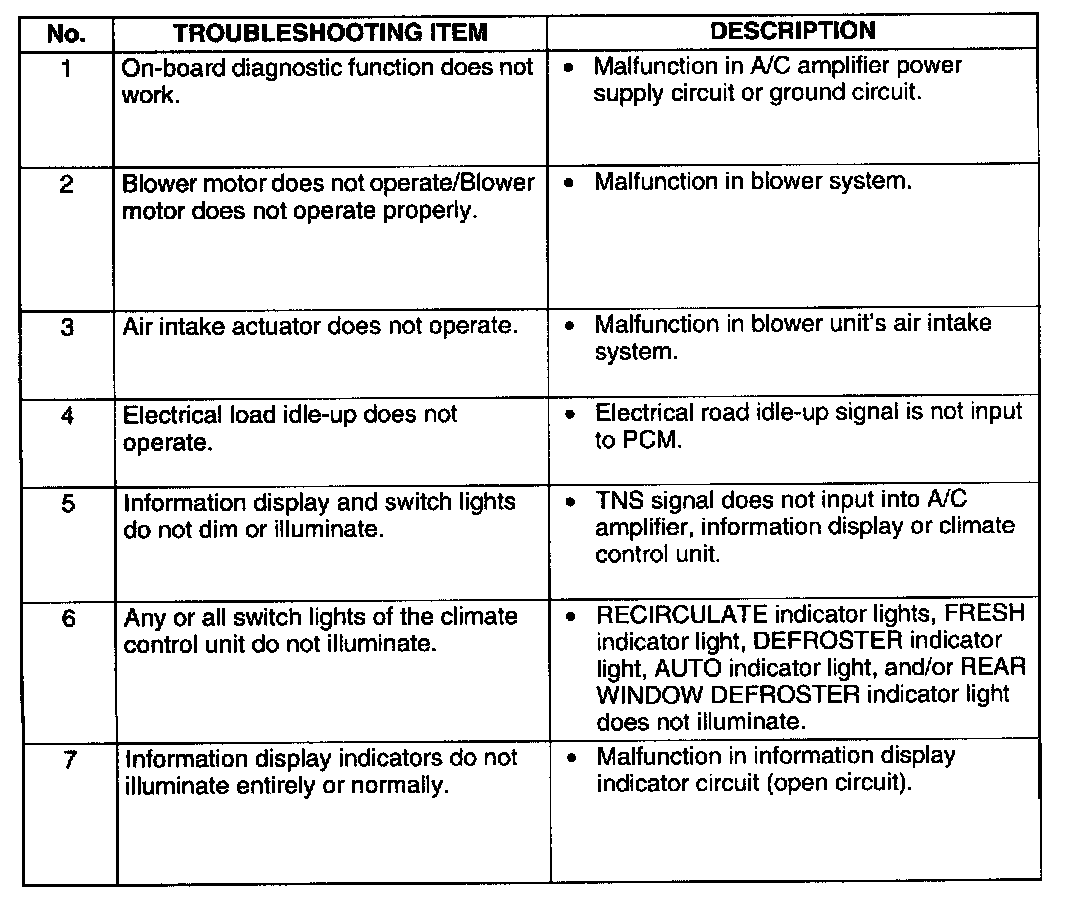

No. 1 - 7:

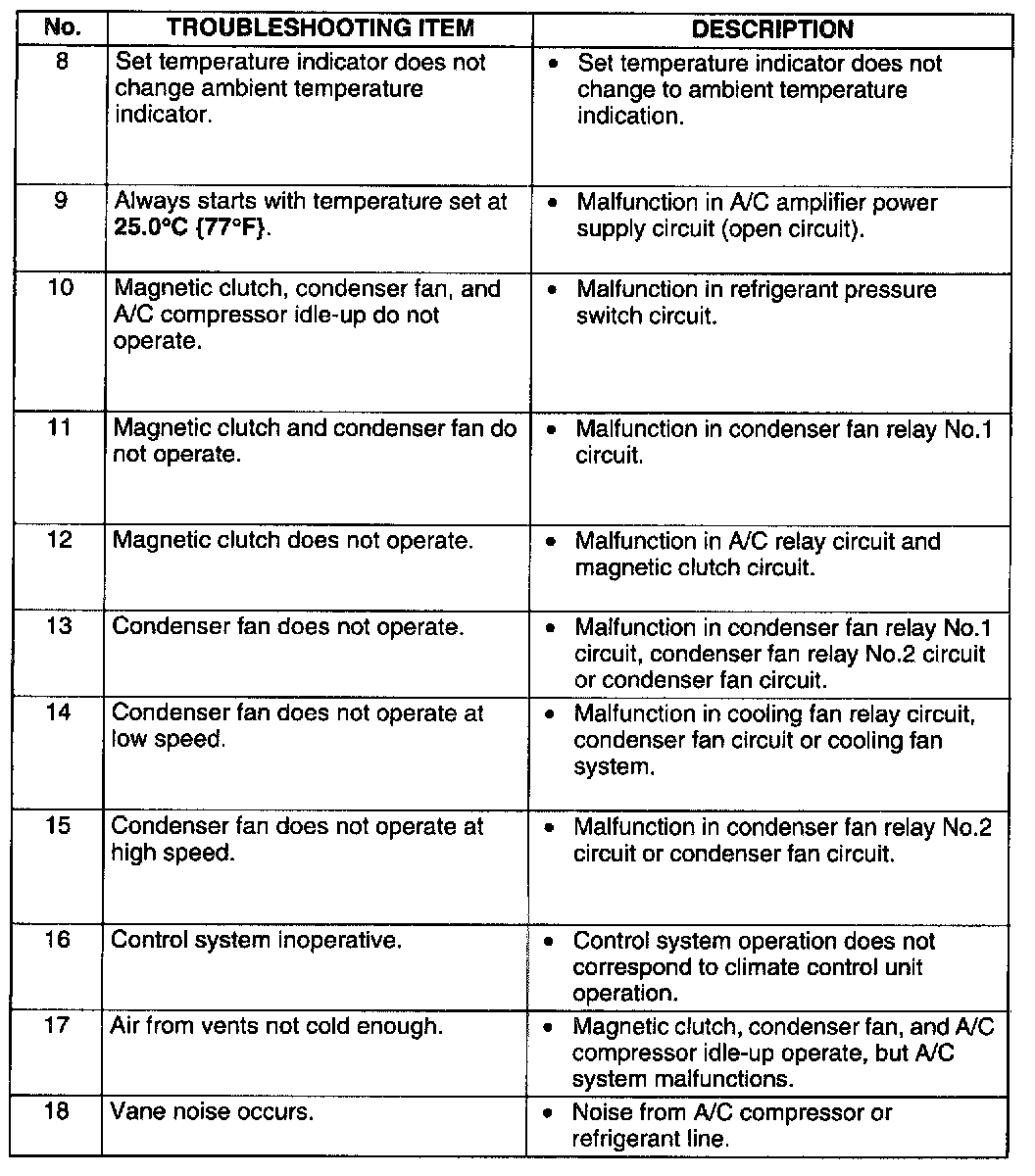

No. 8 - 18:

The areas for inspection (step) are noted according to the various circuit malfunctions. Use the chart above to verify the symptoms of the trouble in order to diagnose the appropriate area.
