Variable Induction Check Valve: Testing and Inspection

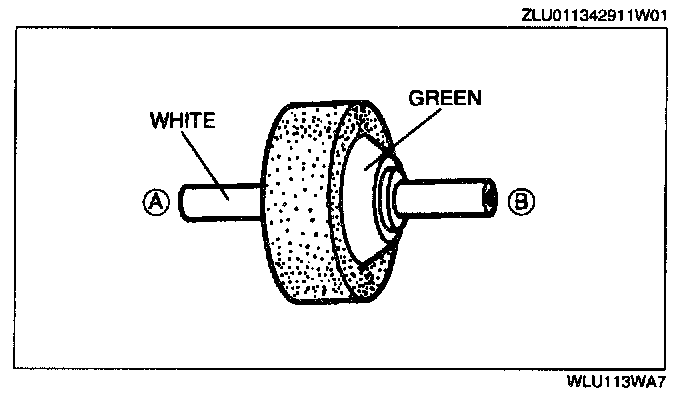

VRIS CHECK VALVE (ONE-WAY) INSPECTION




1. Blow through A and verify that air flows from B.
2. Blow through B and verify that air does not flow from A.
- Replace the VRIS check valve (one-way) if necessary.
