Wiper Relay: Testing and Inspection

INTERMITTENT WIPER RELAY INSPECTION

1. Measure the voltage of the intermittent wiper relay as indicated below.
- If not as specified, inspect the parts listed under "Inspection area" and the related wiring harnesses.
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the intermittent wiper relay.

Harness Side Connector View:

Terminal A:

Terminal B - H:

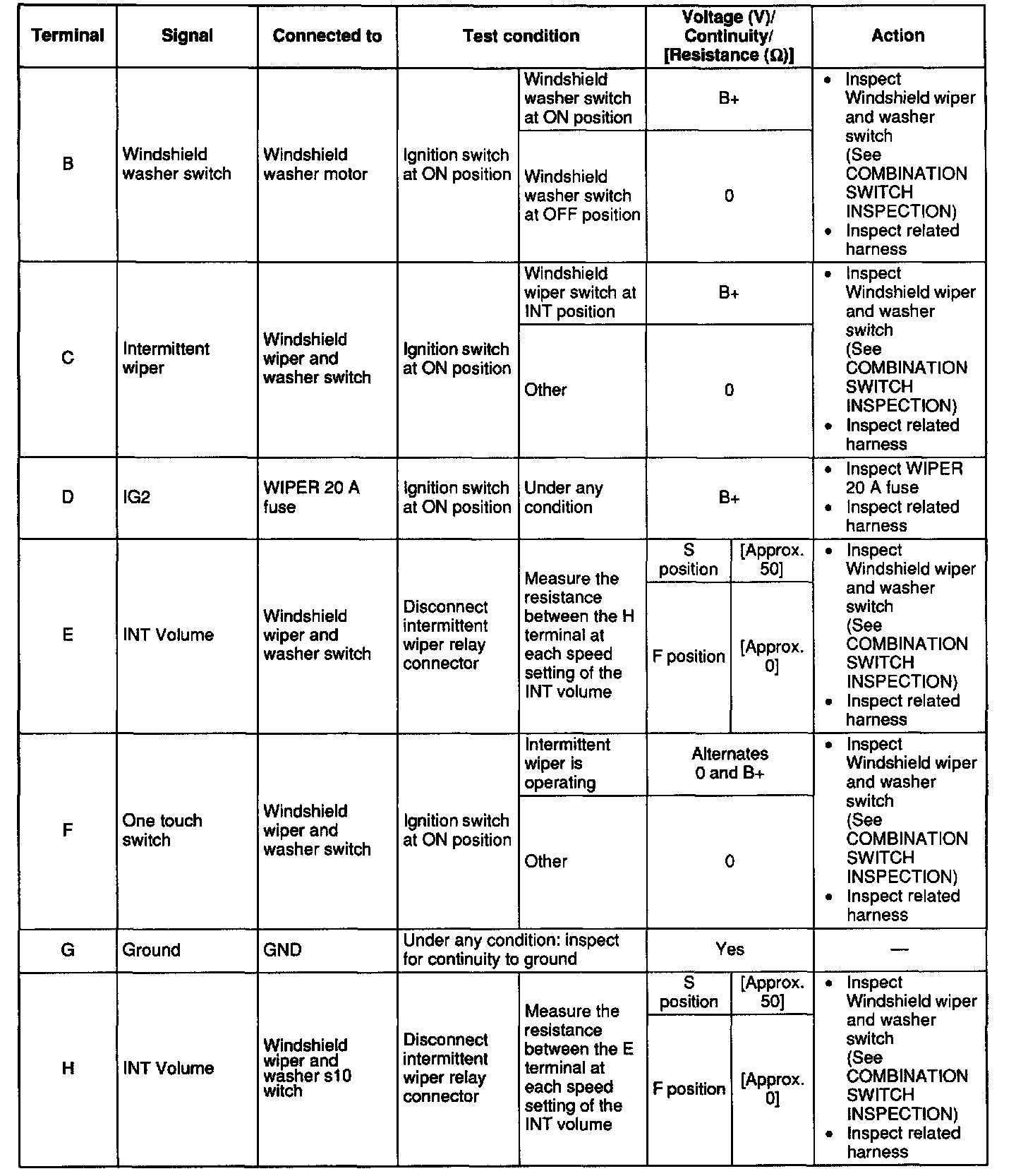

Terminal Voltage Table (Reference)
