Child Seat Tether Attachment: Service and Repair

CHILD RESTRAINT SEAT ANCHOR REMOVAL/INSTALLATION

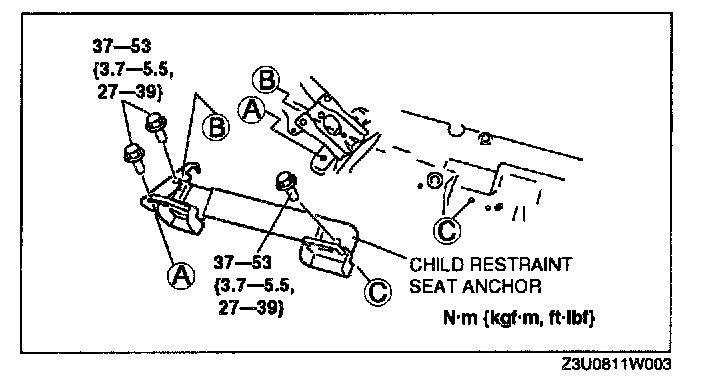

ISOFIX Anchor
1. Fold down the rear seat back.
2. Remove the tire house trim.




3. Remove the child restraint seat anchor.

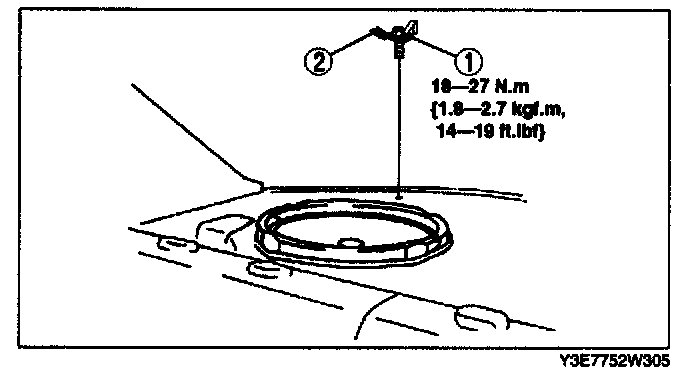

Tether Anchor
1. Remove the rear package trim.




2. Remove in the order indicated in the table.
1. Bolt
2. Child restraint seat anchor

3. Install in the reverse order of removal.
