Connector Locations
Connector Locations

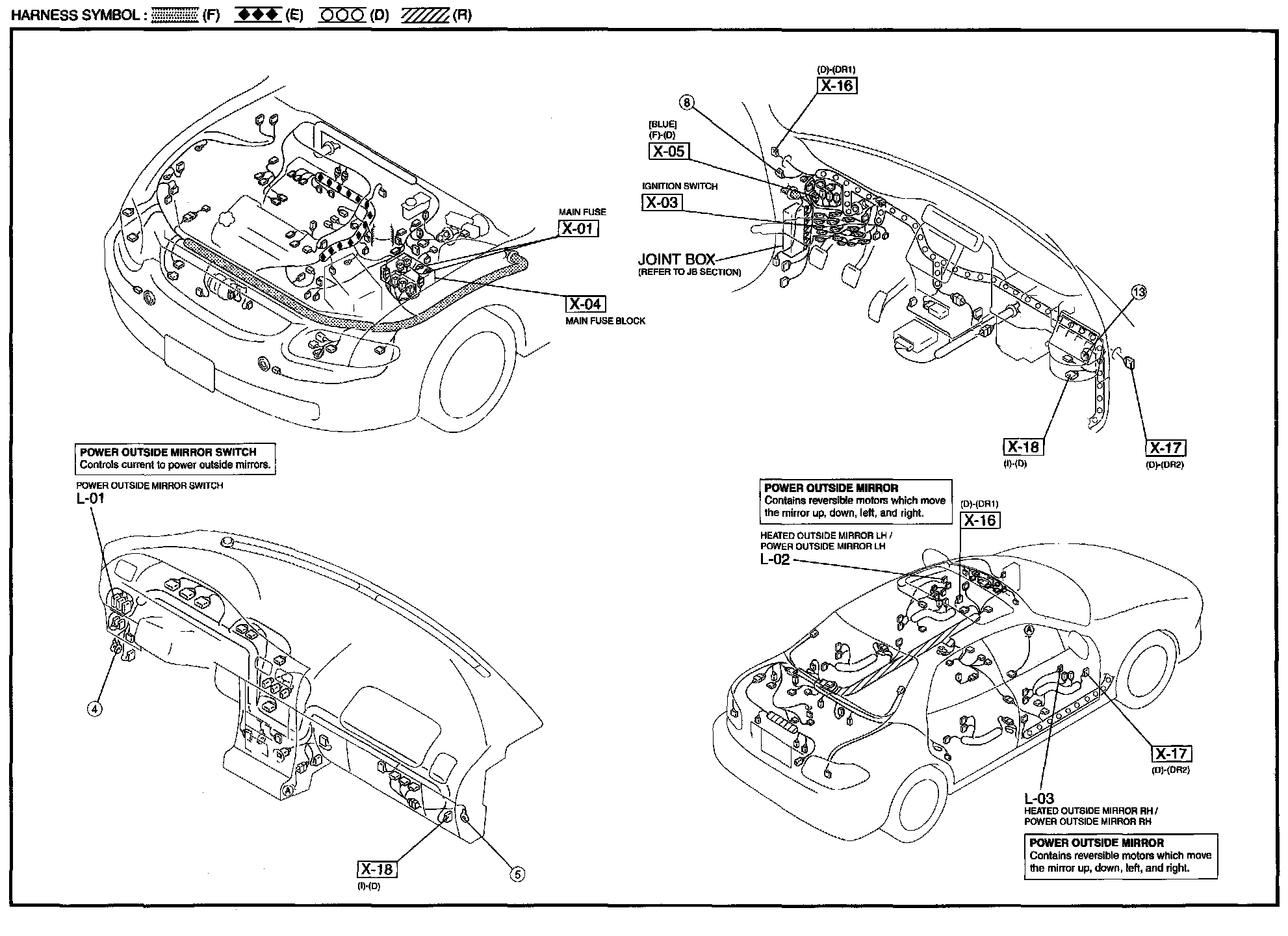

L - Heated Outside Mirror/Power Outside Mirror Harness/Connector Symbols:
