B-1b
B-1b

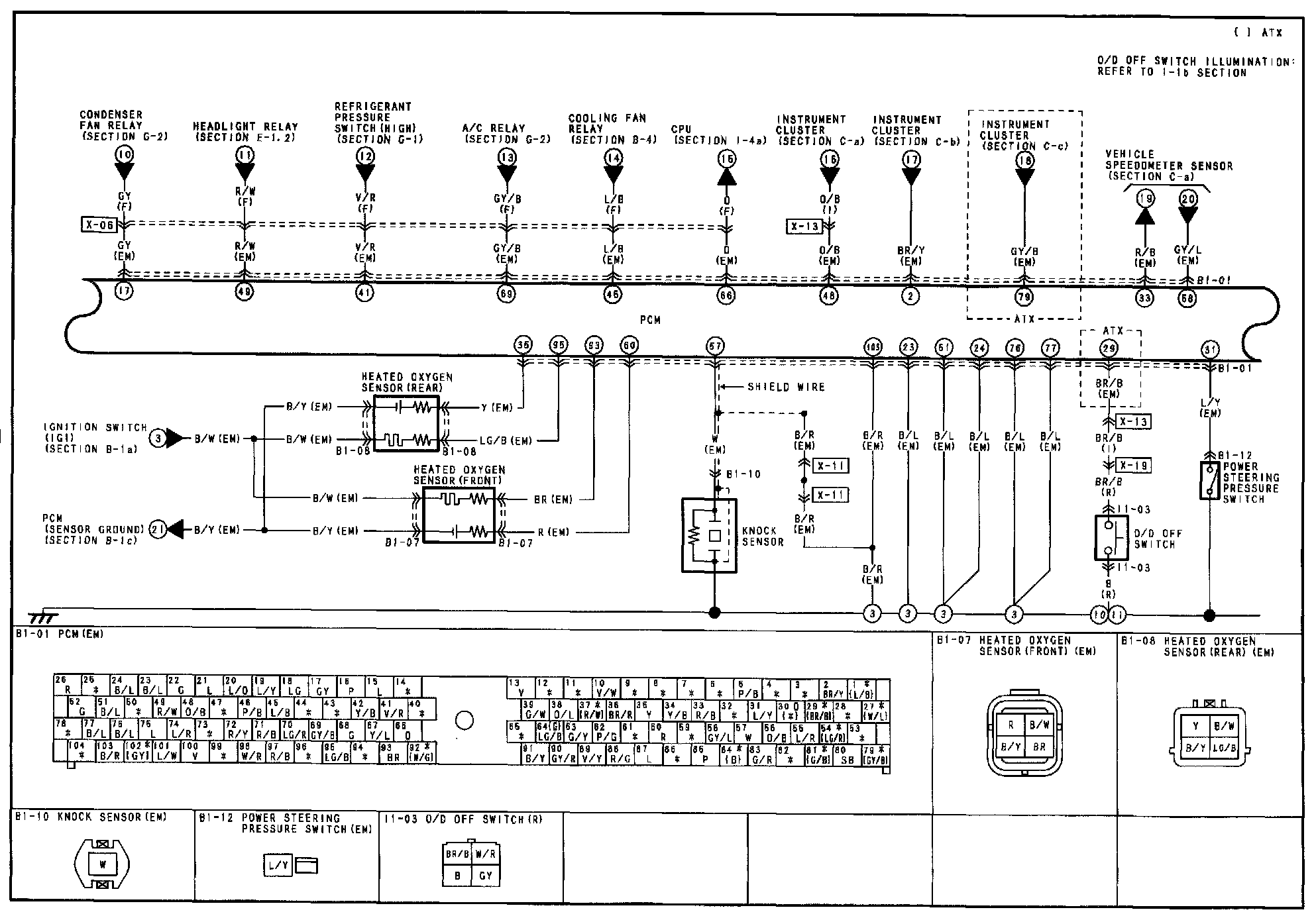

B-1b - EC-AT Control System (FS)/Engine Control System (FS) Circuit:
B-1b - EC-AT Control System (FS)/Engine Control System (FS) Harness/Connector Symbols:
