B-1c
B-1c

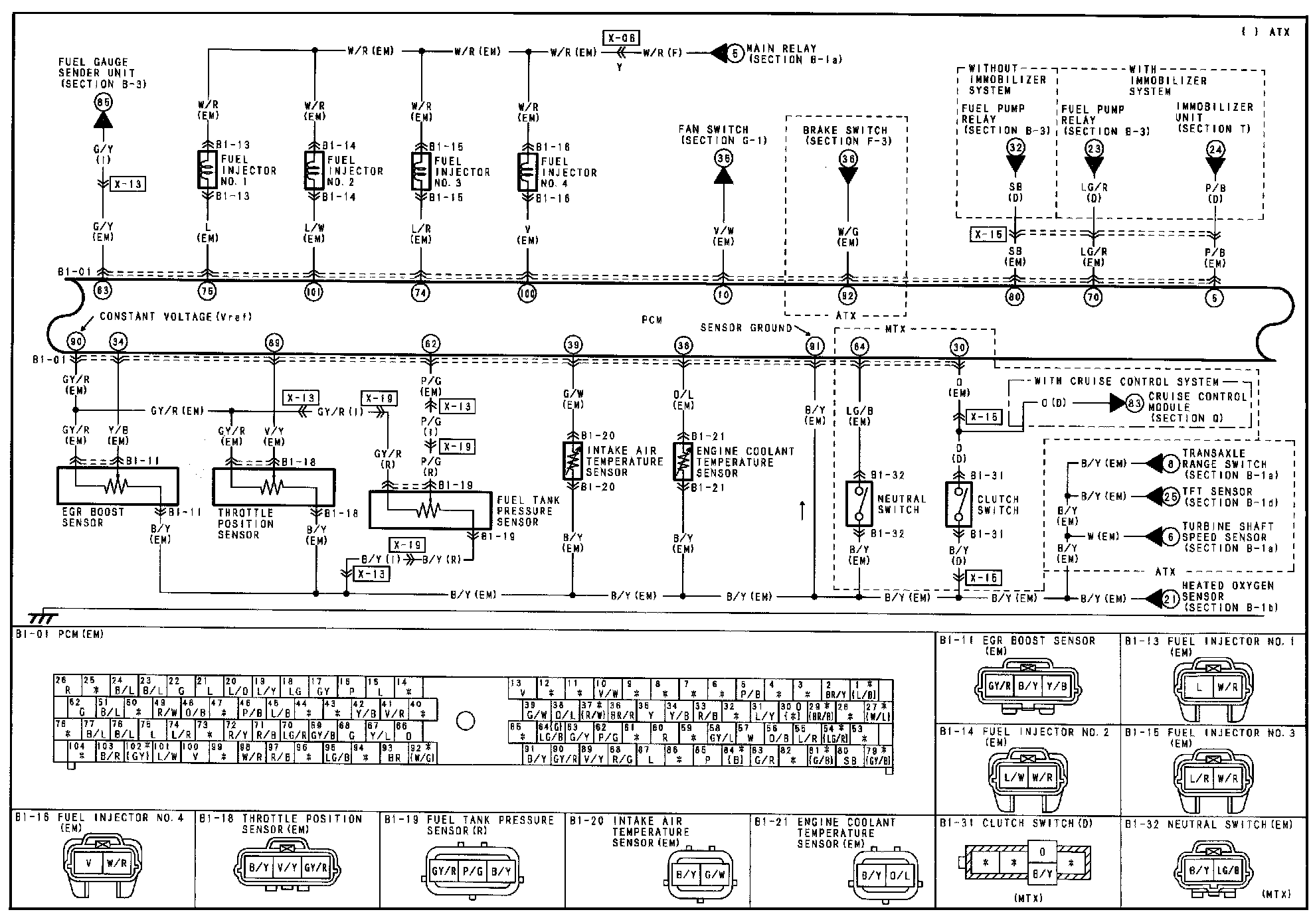

B-1c - EC-AT Control System (FS)/Engine Control System (FS) Circuit:
B-1c - EC-AT Control System (FS)/Engine Control System (FS) Harness/Connector Symbols:
