B-1d
B-1d

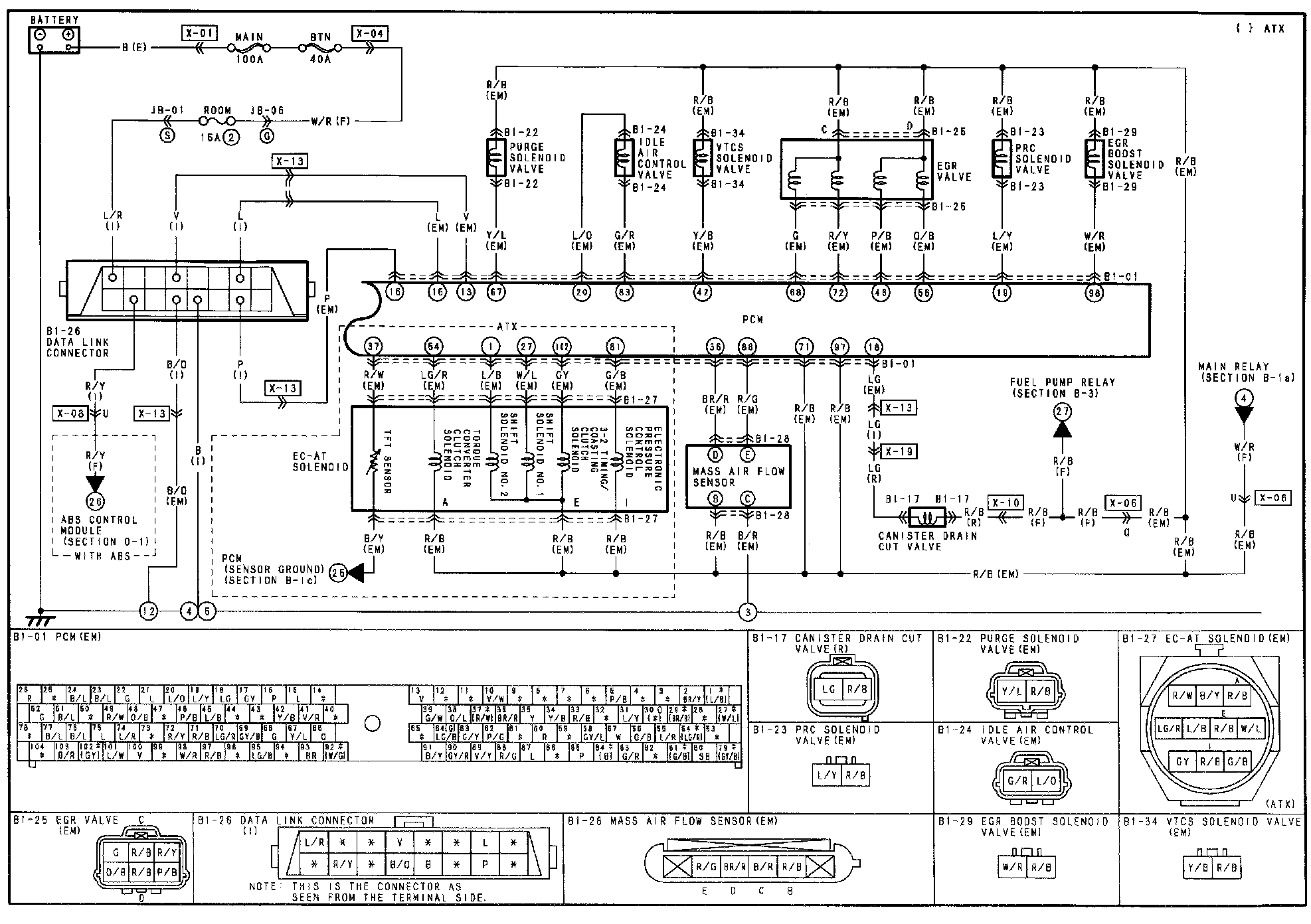

B-1d - EC-AT Control System (FS)/Engine Control System (FS) Circuit:
B-1d - EC-AT Control System (FS)/Engine Control System (FS) Harness/Connector Symbols:
