Dimmer Switch

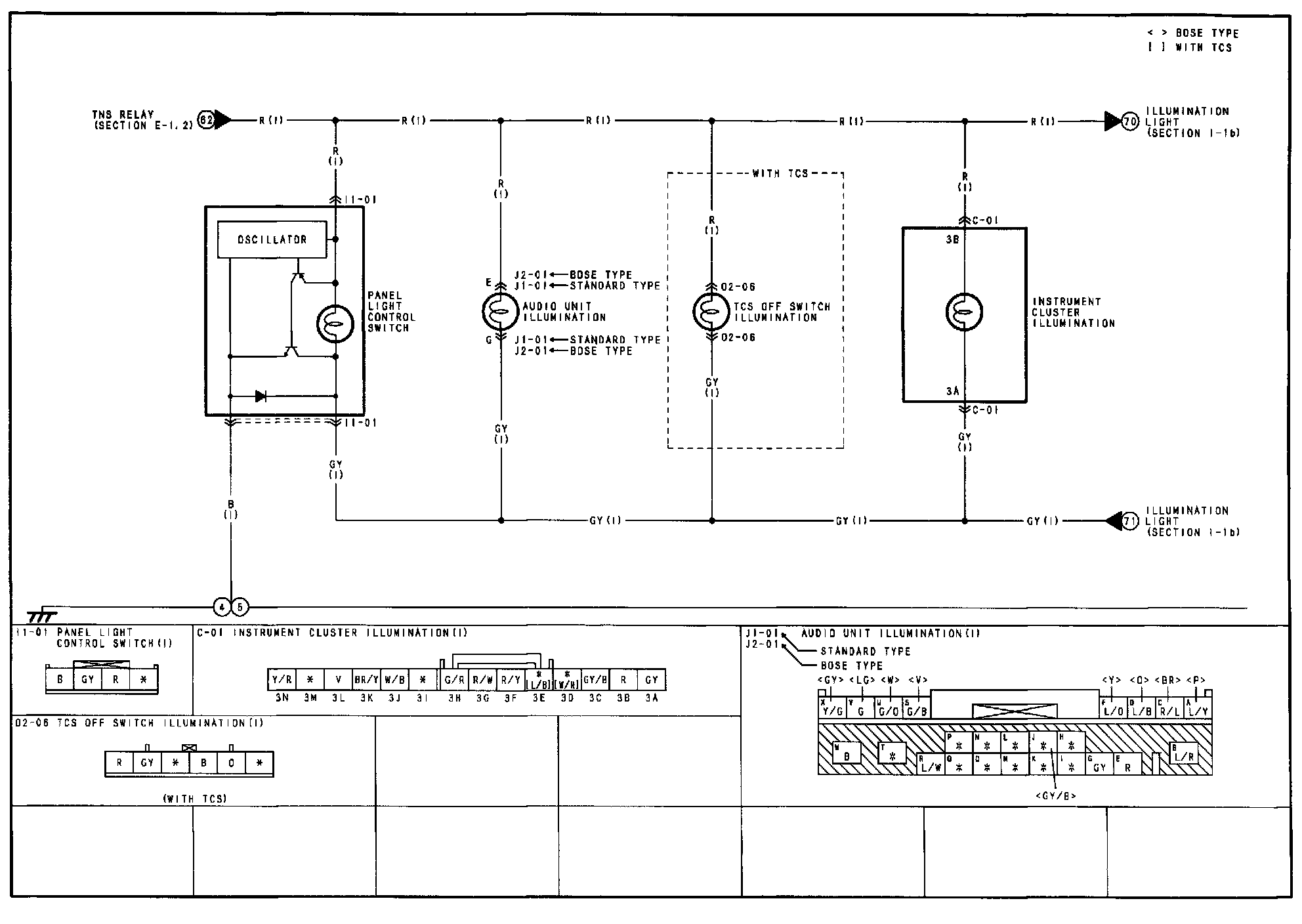

I-1a - Illumination Light Circuit:

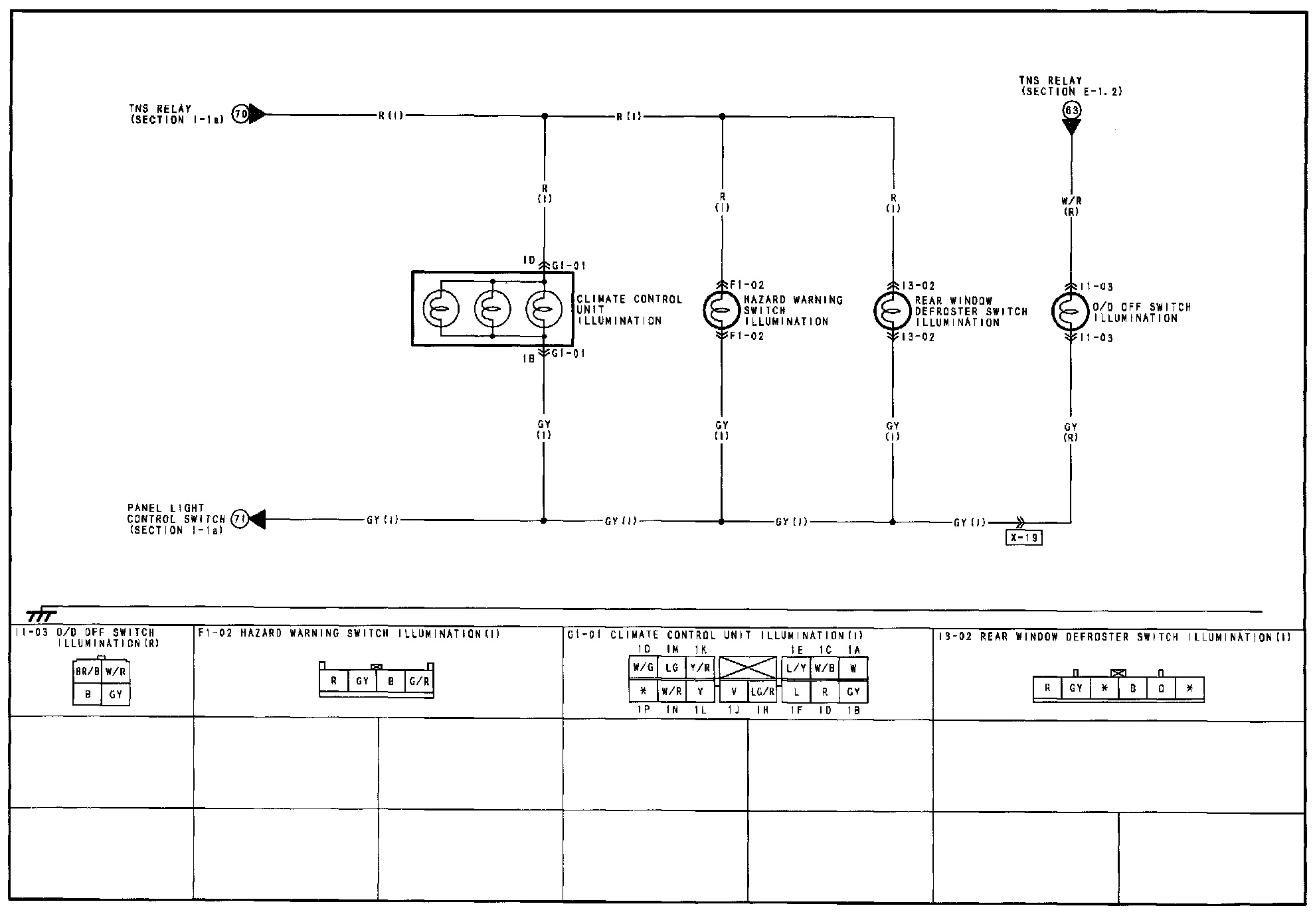

I-1b - Illumination Light Circuit:

Wiring Diagram

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
