Radiator: Service and Repair

RADIATOR REMOVAL/INSTALLATION

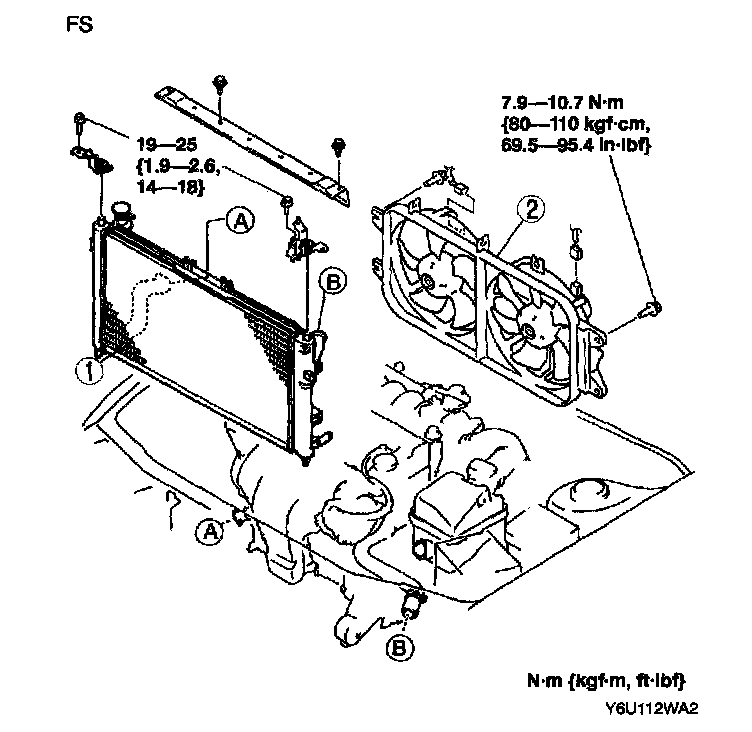

FS

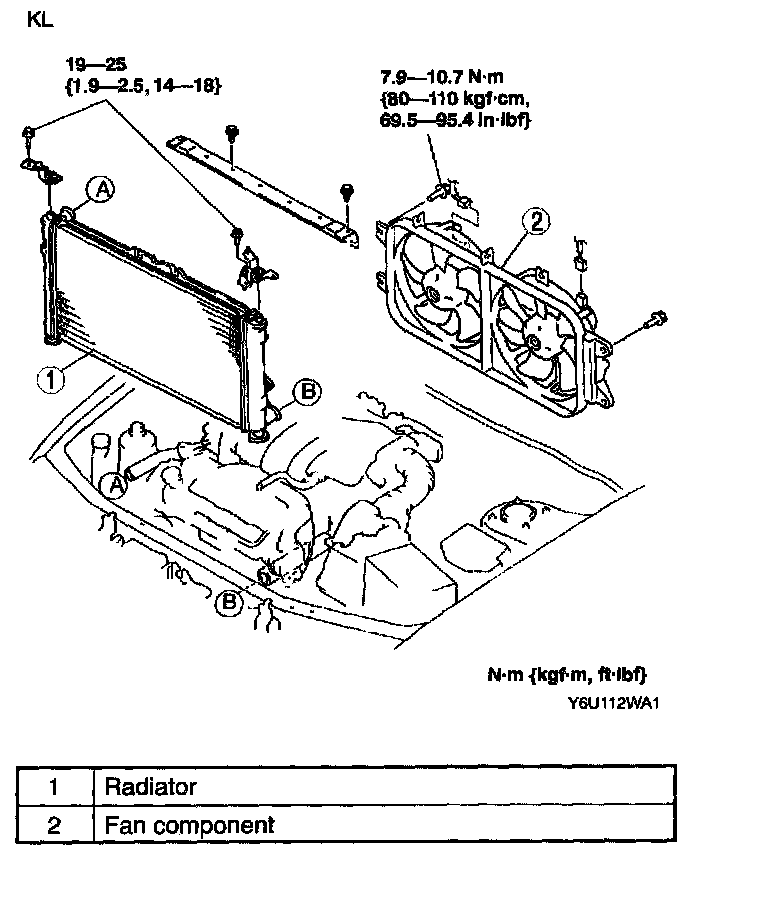

KL

1. Disconnect the negative battery cable.
2. Drain the engine coolant.
3. Remove the fresh-air duct.
4. Remove the oil pipe. (FS: ATX)
5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
