Rear Duct
REAR DUCT REMOVAL/INSTALLATION1. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION.)

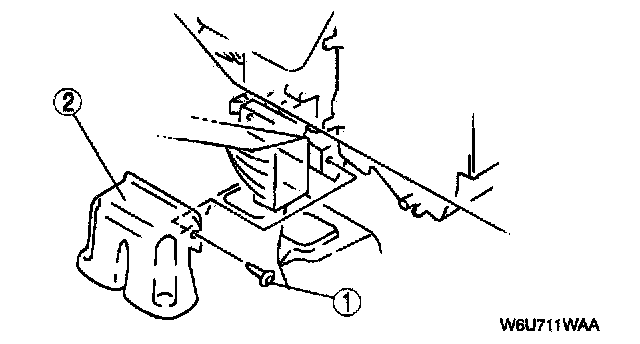

2. Remove in the order indicated below.
1. Fastener
2. Rear duct
3. Install in the reverse order of removal.
1. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION.)
2. Remove in the order indicated below.
1. Fastener
2. Rear duct
3. Install in the reverse order of removal.
