Home >> Mazda >> 2002 >> 626 LX L4-2.0L DOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Sunroof / Moonroof Module >> Description and Operation

Sunroof / Moonroof Module: Description and Operation

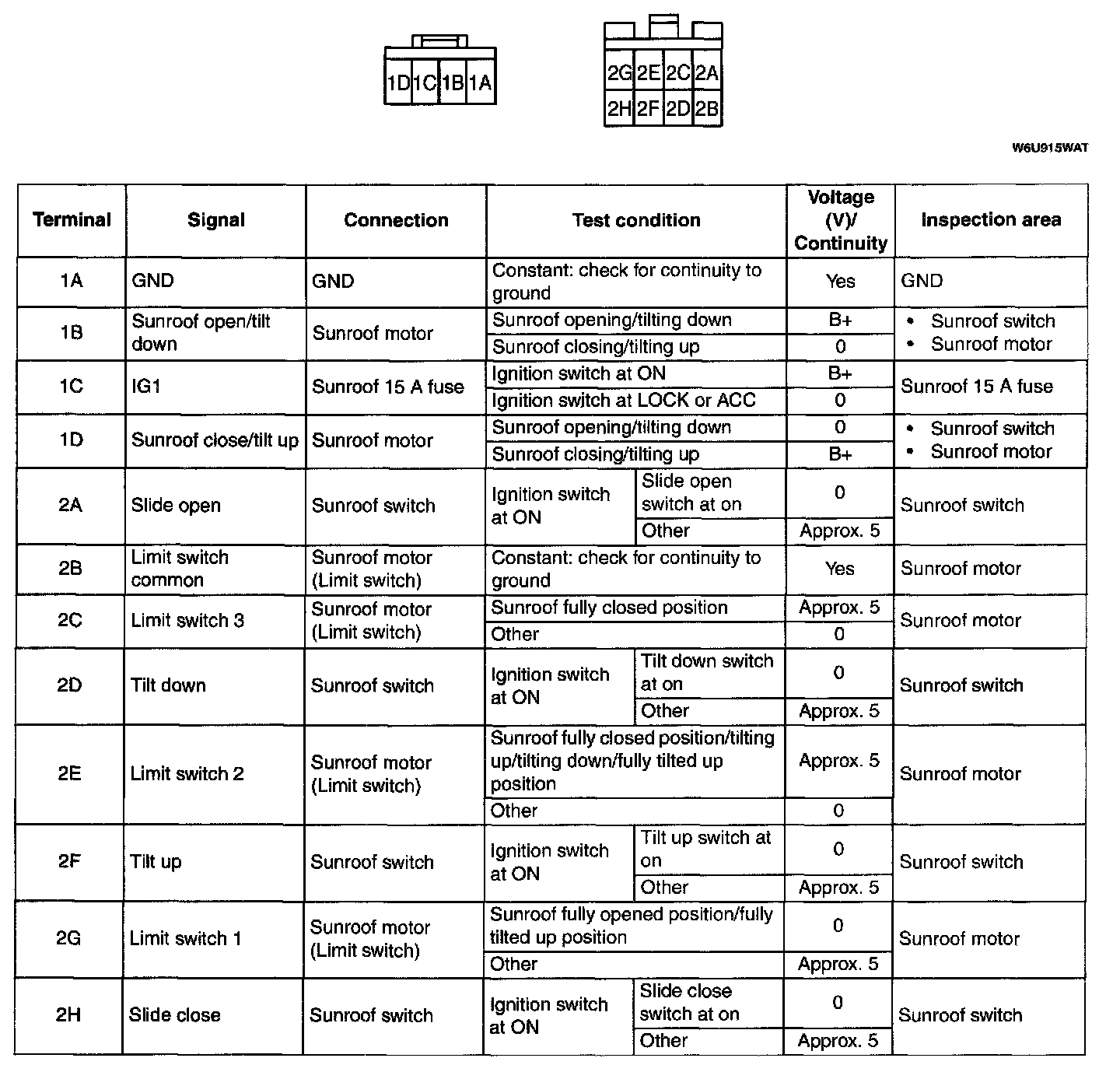

Sunroof Control Module Terminal Voltage Table (Reference):
