Transmission and Drivetrain: Tools and Equipment

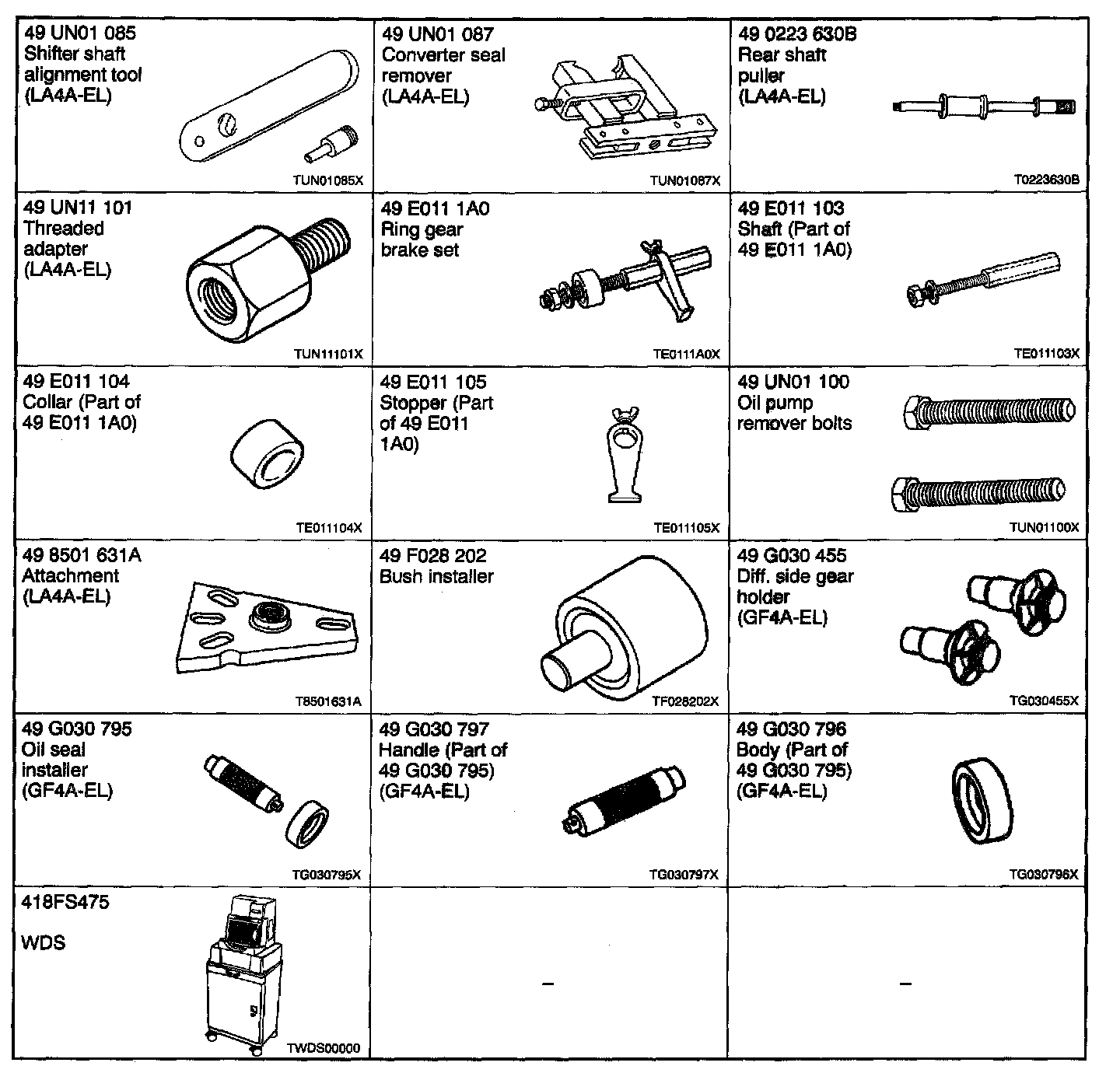

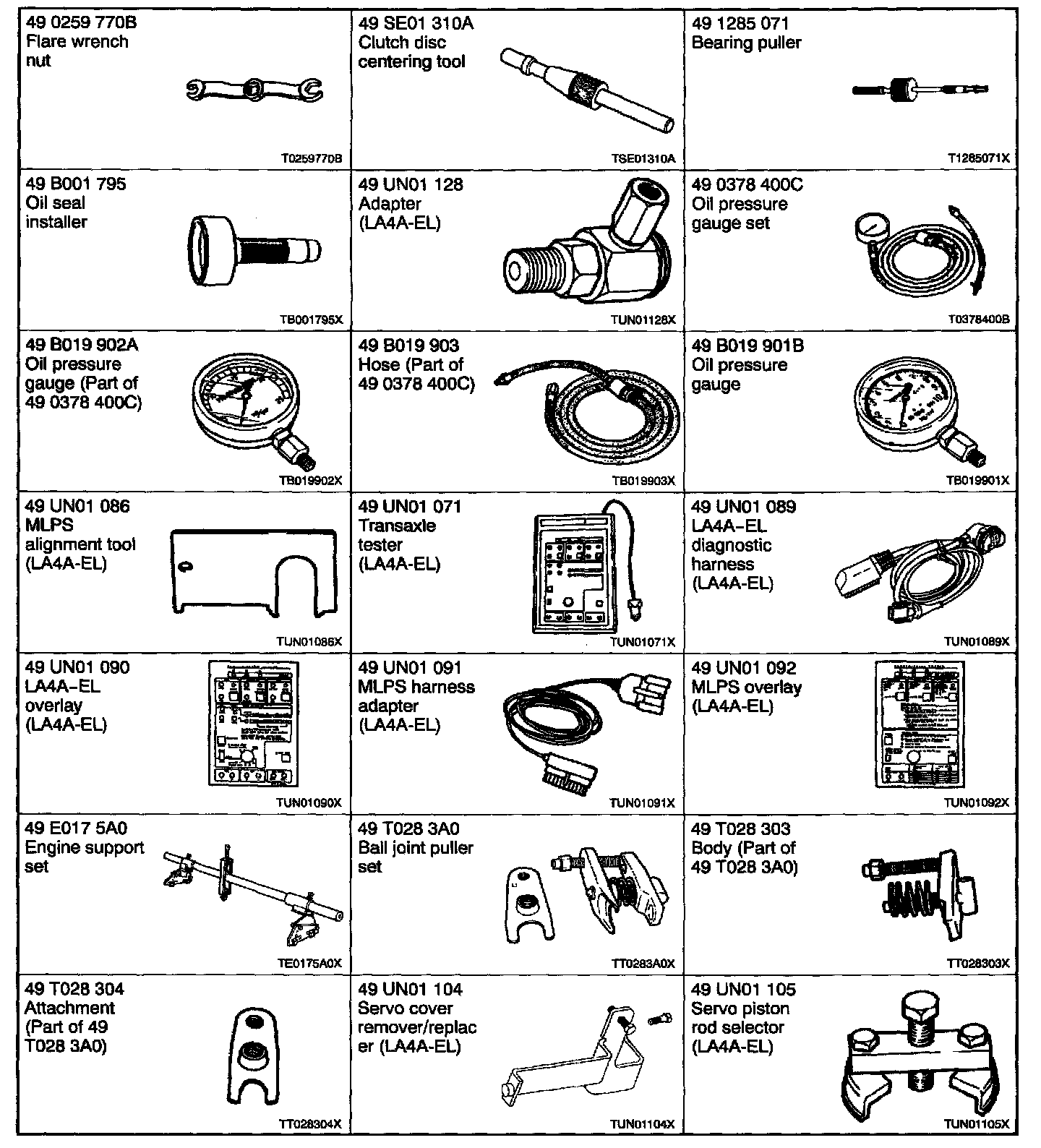

SERVICE TOOLS

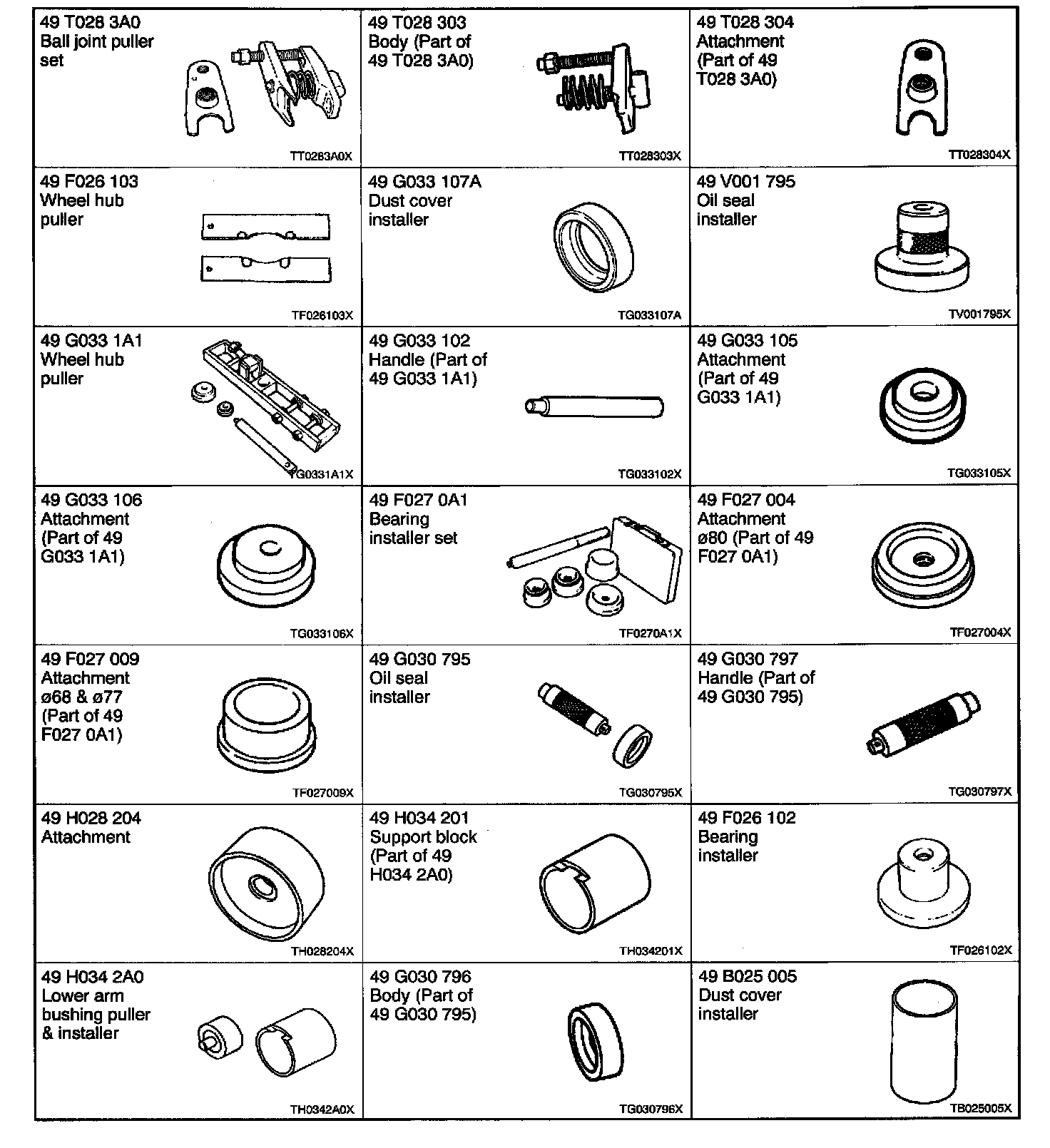

Driveline/Axle (Part 1 of 2)





Driveline/Axle (Part 2 of 2)





Clutch, Manual and Automatic Transaxle (Part 1 of 2)





Clutch, Manual and Automatic Transaxle (Part 2 of 2)
