Symptom Index

Use the charts to verify the symptoms of the trouble in order to diagnose the appropriate area.

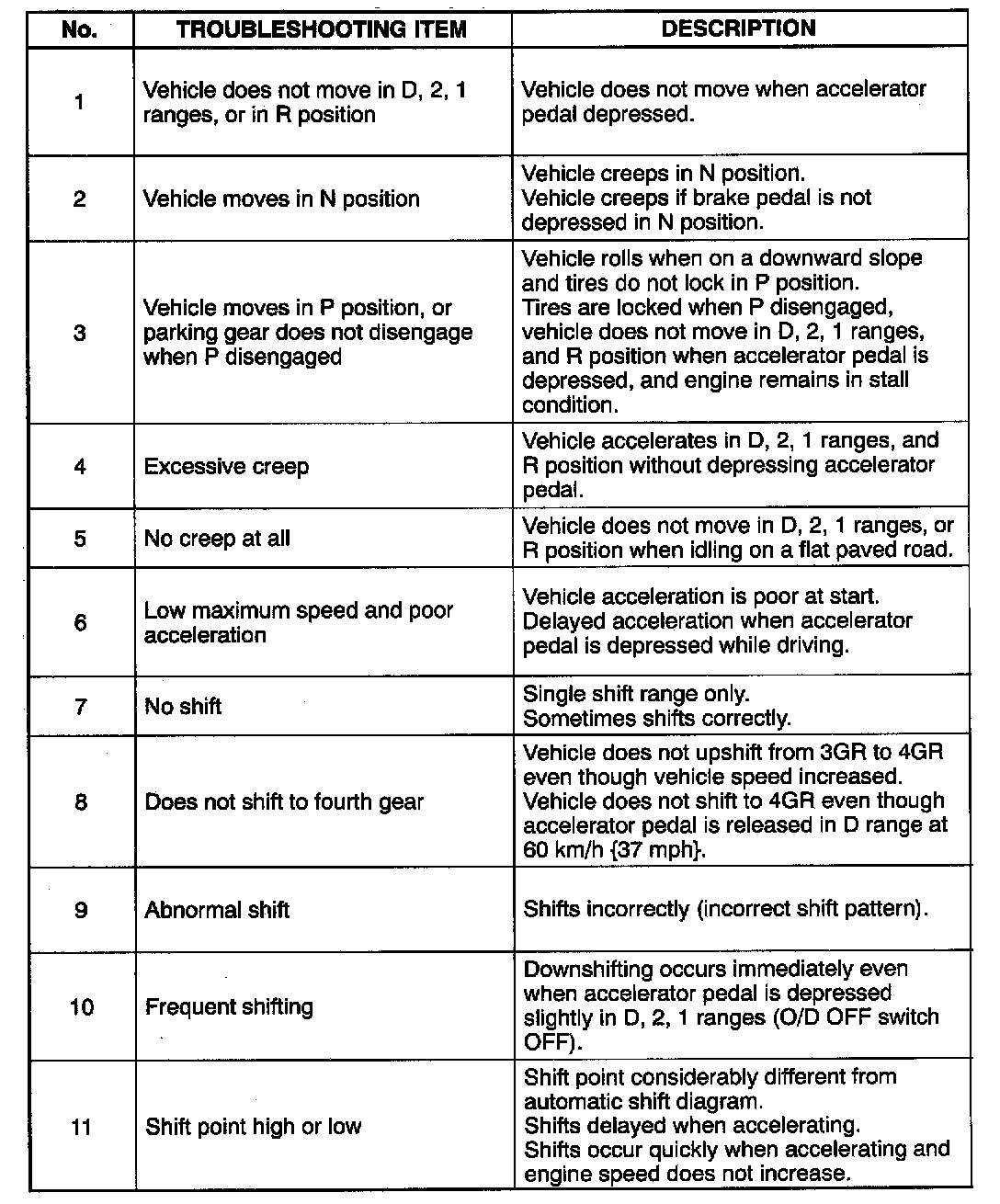

Diagnosic Index Steps 1 through 11

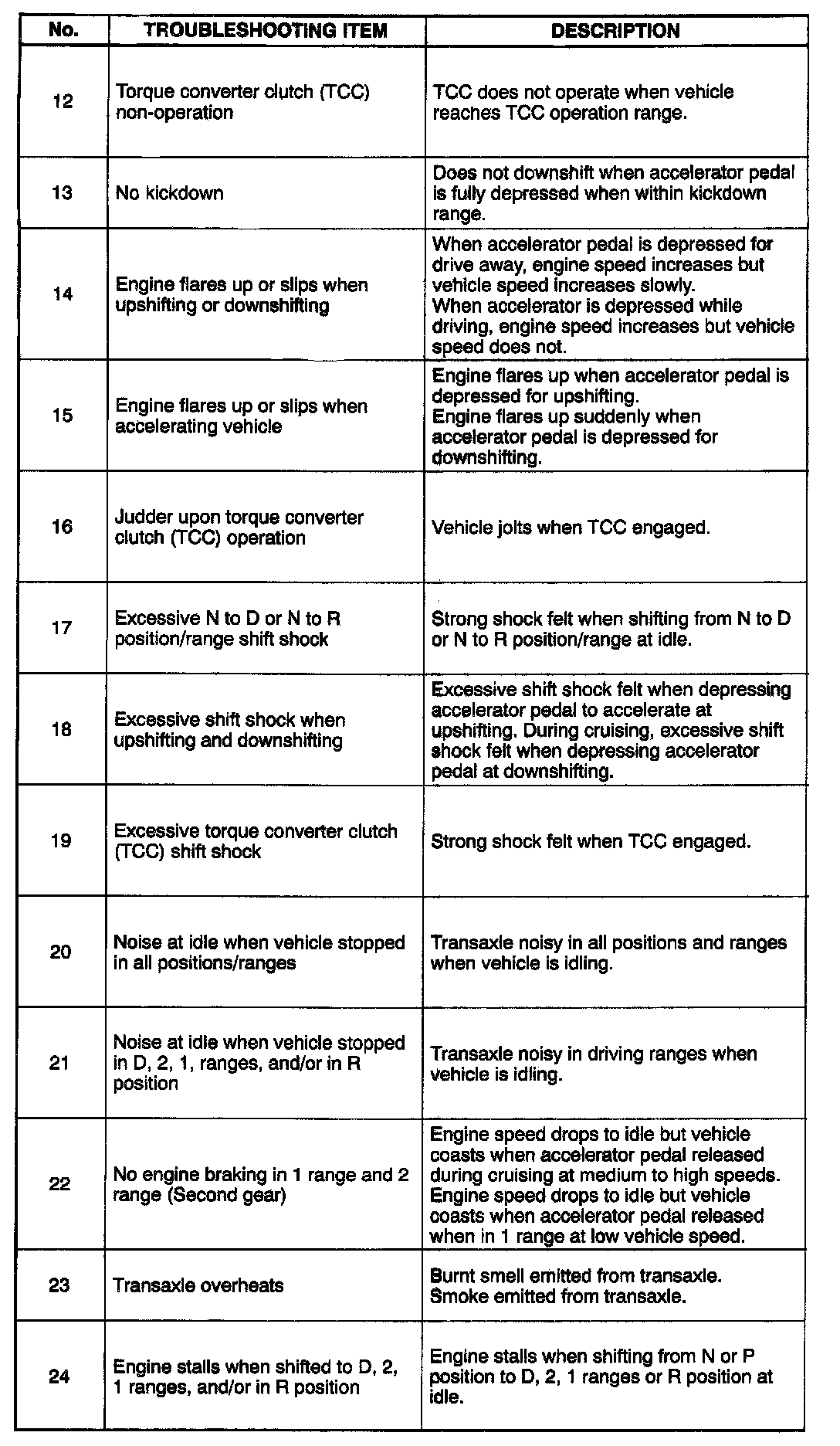

Diagnosic Index Steps 12 through 24

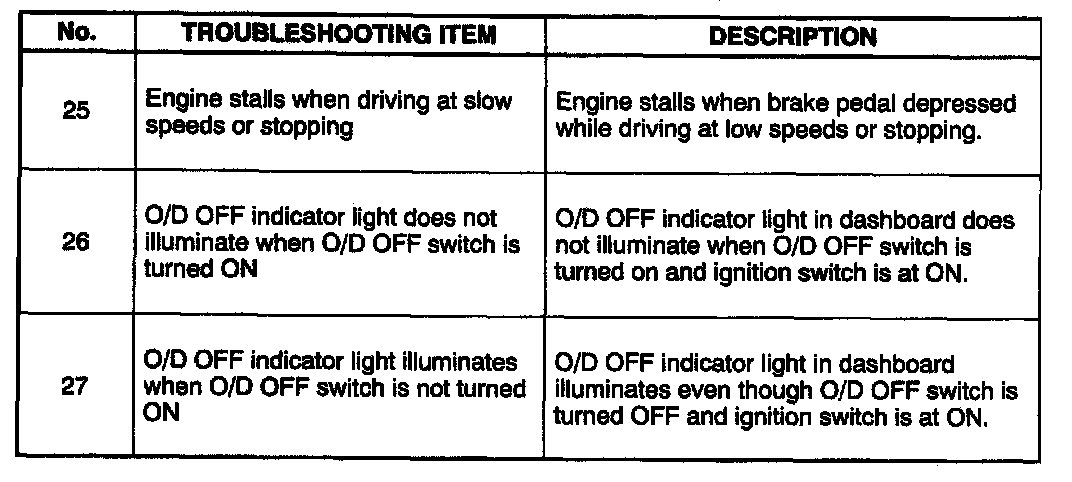

Diagnosic Index Steps 25 through 27
