Rear Door Window Regulator: Service and Repair

REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the rear door glass.

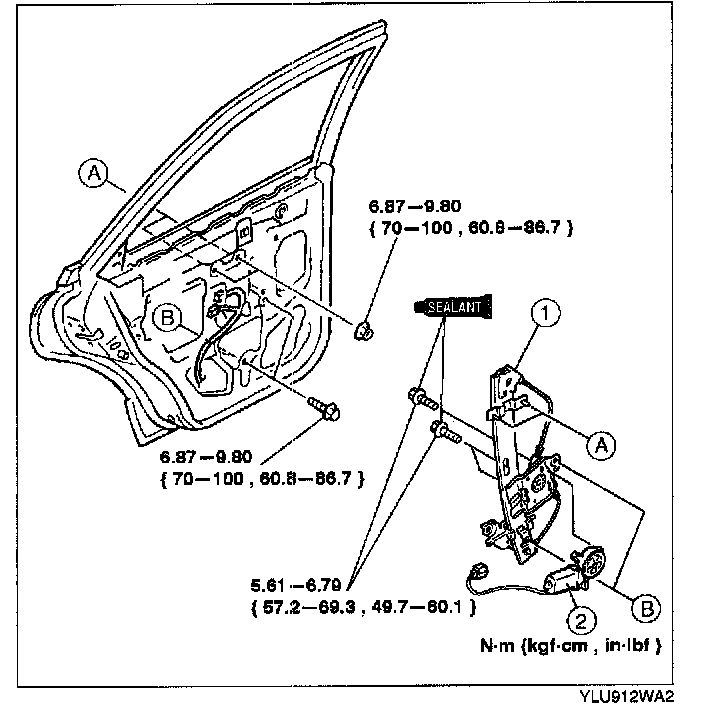

3. Remove in the order as indicated below.

1. Rear power window regulator
2. Rear power window motor

4. Install in the reverse order of removal.
