Operation CHARM: Car repair manuals for everyone.
Home >> Mazda >> 2002 >> Millenia S V6-2.3L DOHC (Miller cycle) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Mode 6 Data >> Diagnostic Monitoring Test Results

Diagnostic Monitoring Test Results

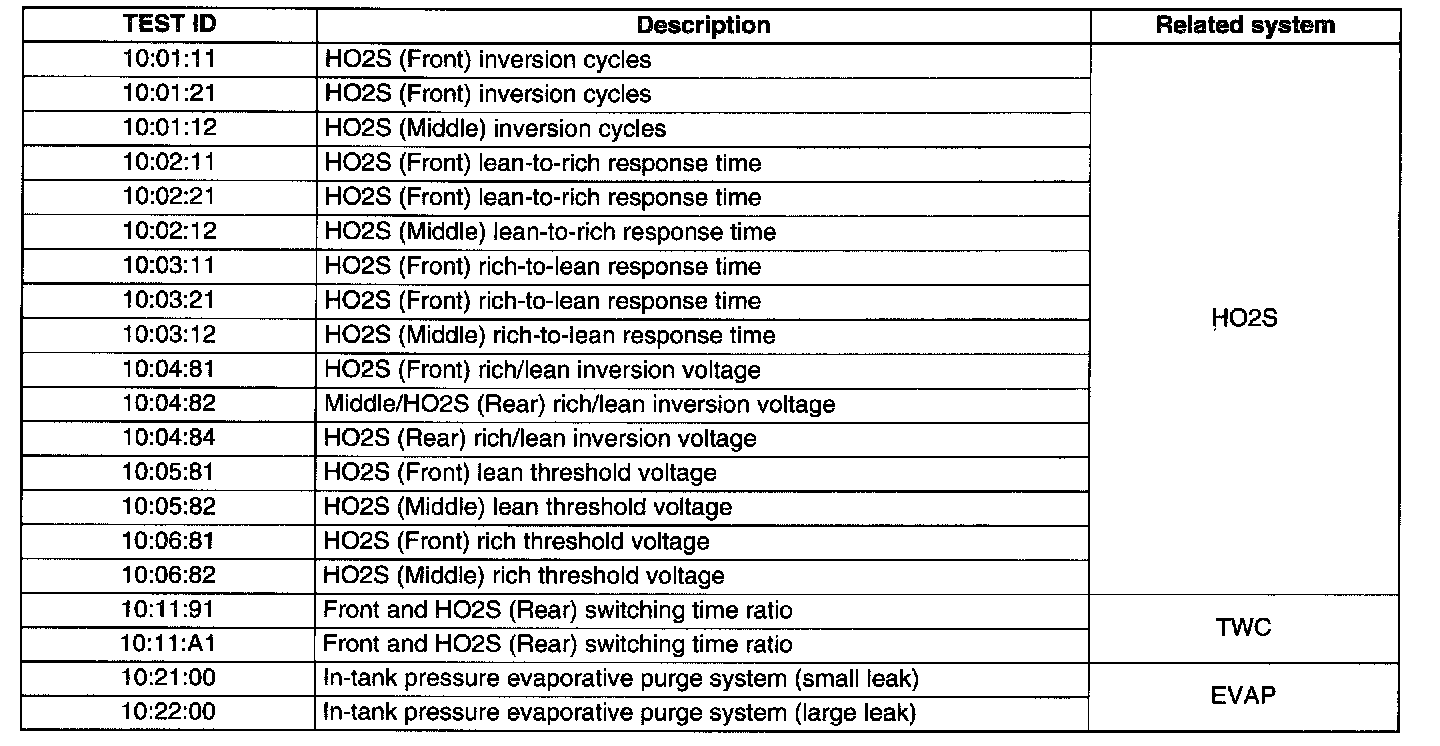

Part 1:

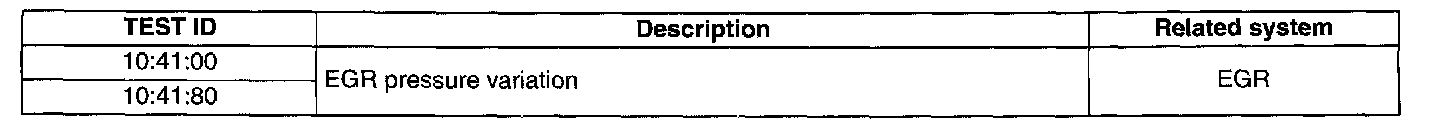

Part 2:
