Idle Speed/Throttle Actuator - Electronic: Service and Repair

IDLE AIR CONTROL (IAC) VALVE REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the air hose and the throttle body. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION.)
3. Disconnect the IAC valve connector.

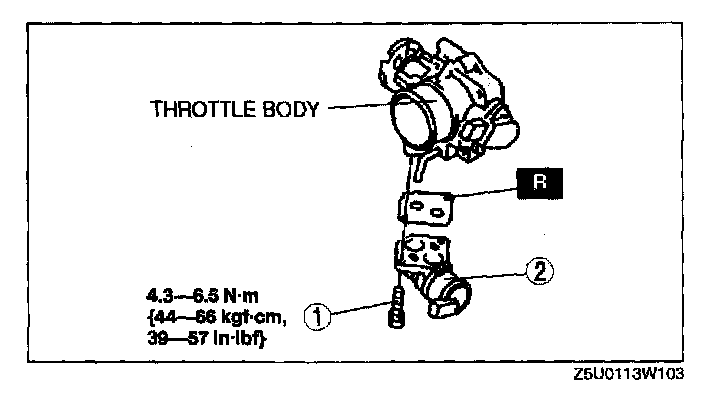

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
