A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P0500
>>
Transmission Control System
Transmission Control System
DTC P0500

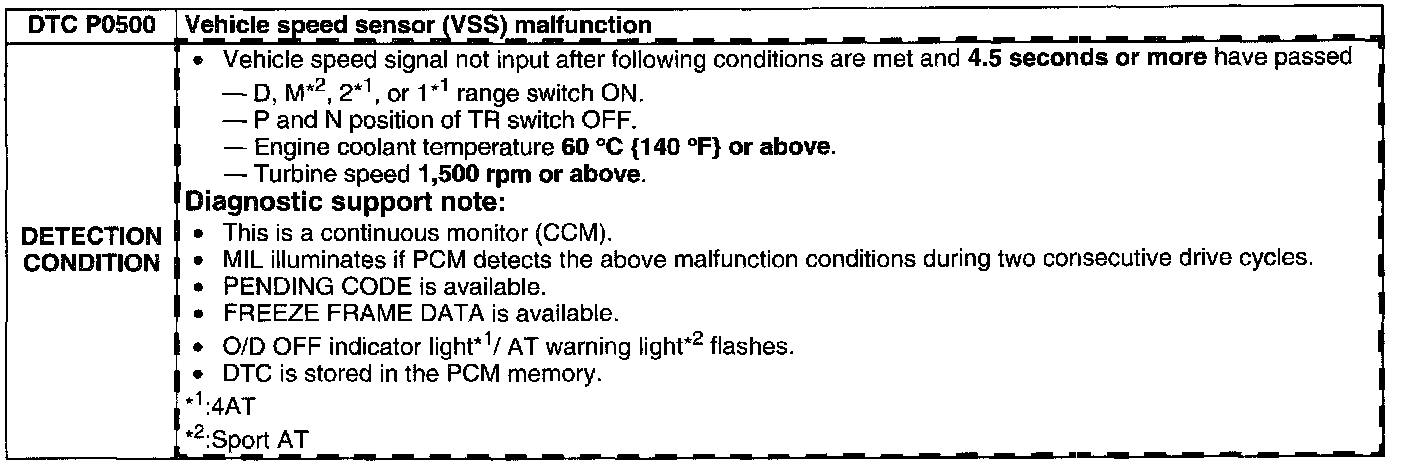

Detection Condition

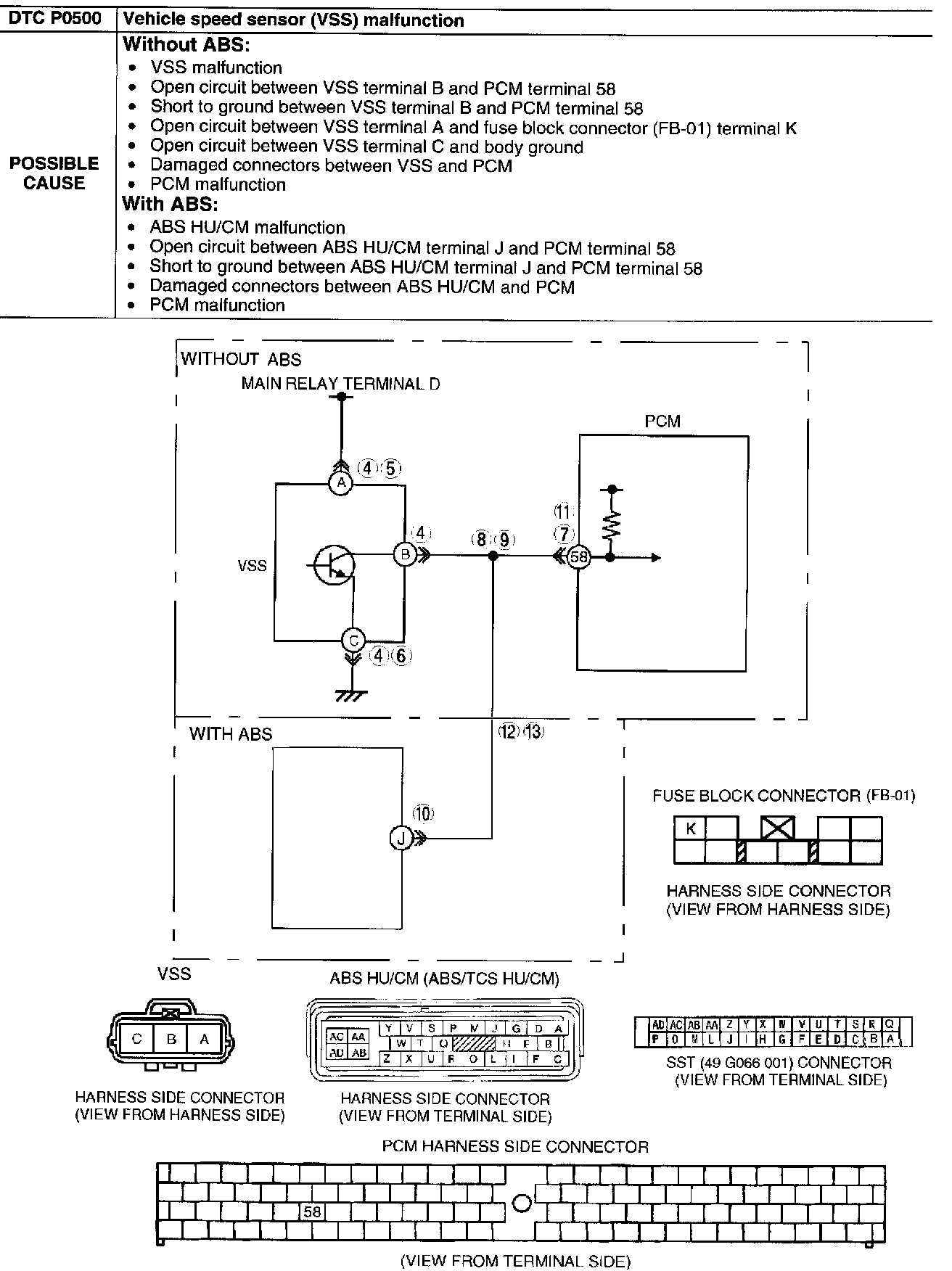

Possible Cause & Circuit Diagram

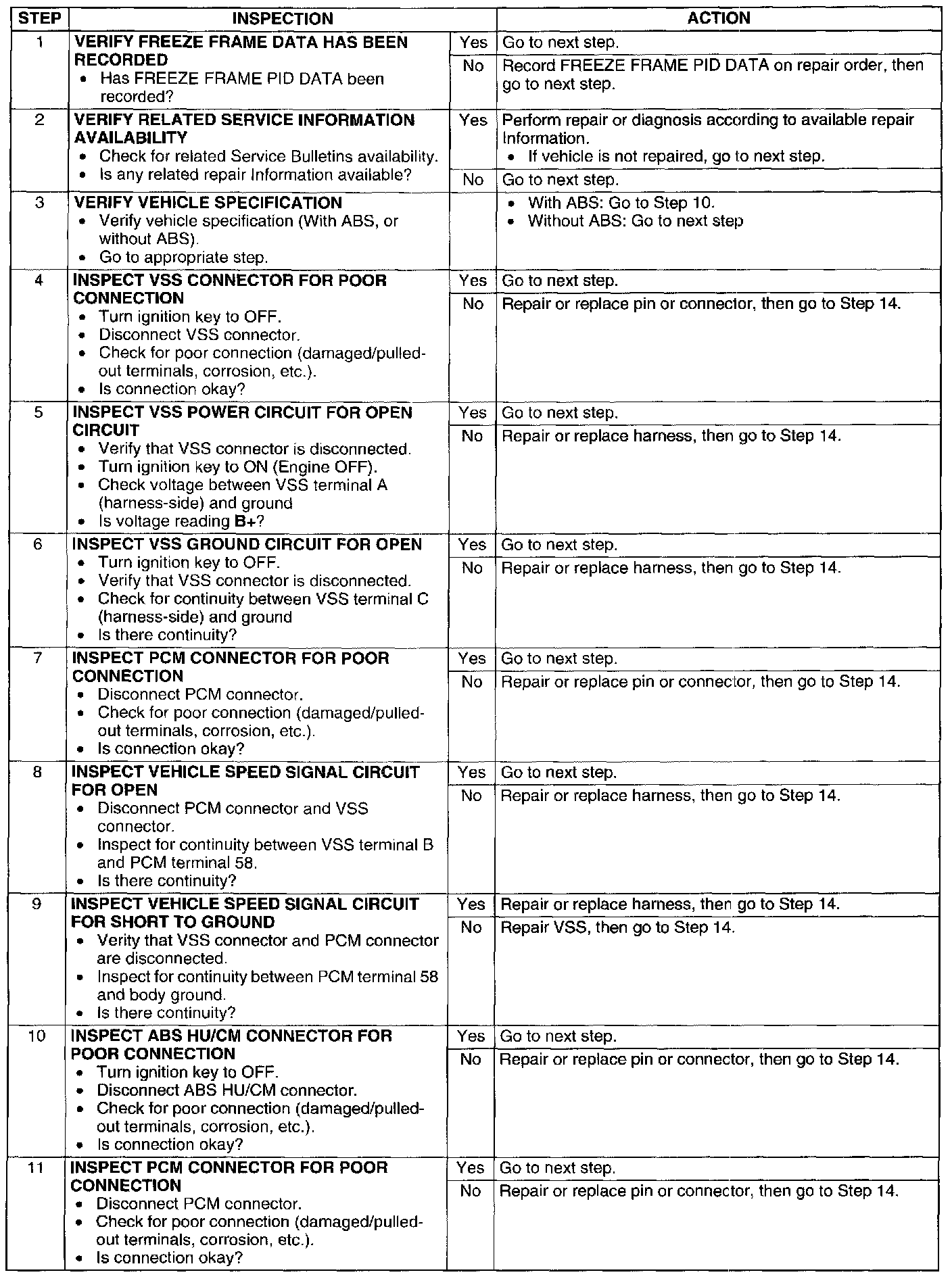

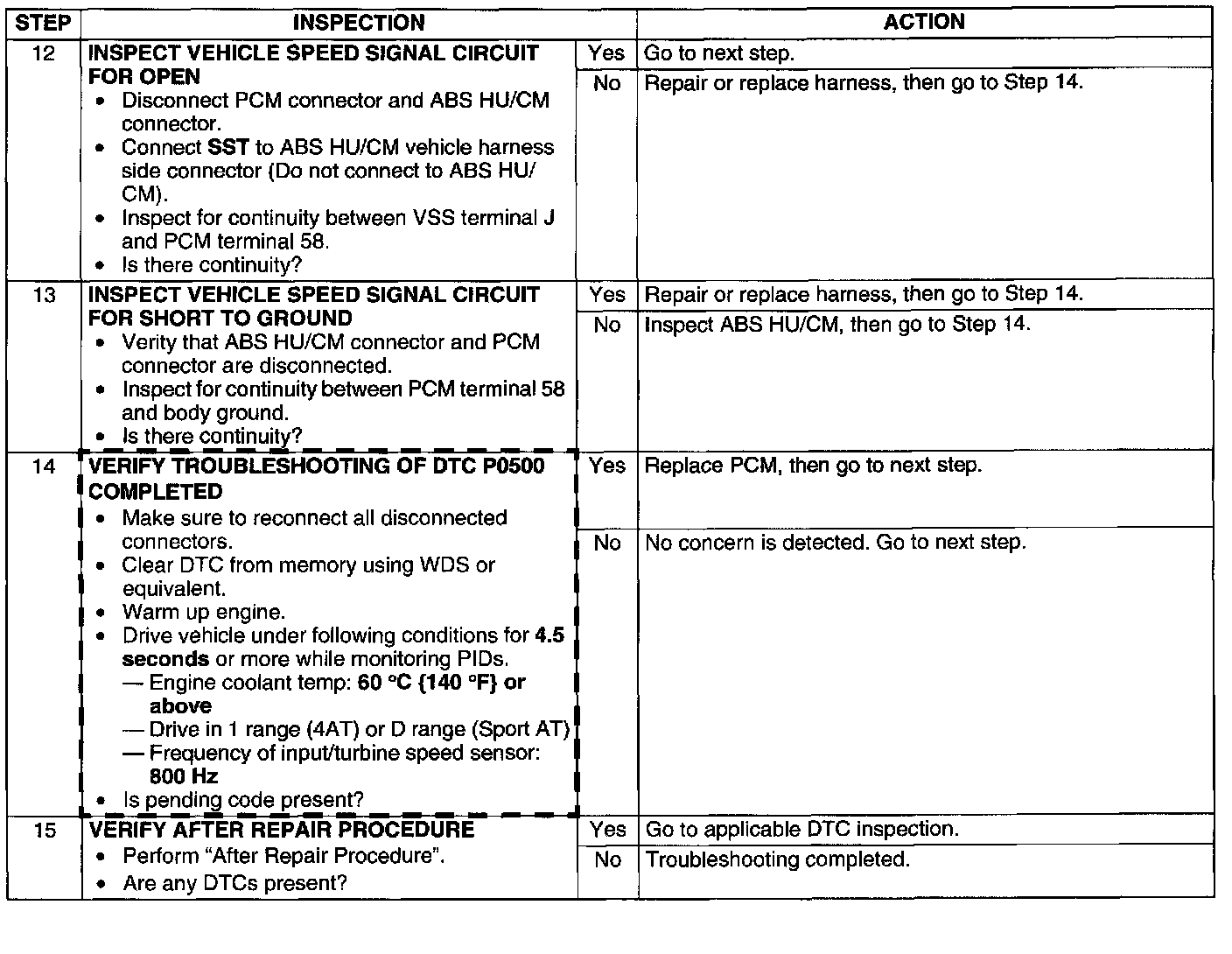

Diagnostic Procedure
