Rear Washer Motor

REAR WASHER MOTOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Partially peel off the right side mud guard.
3. Remove the washer tank.

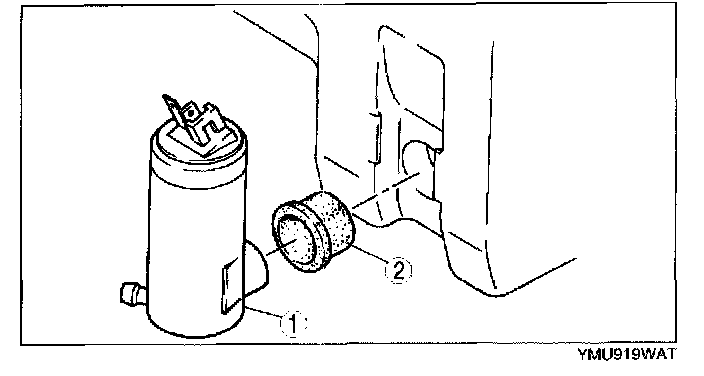

4. Remove in the order indicated below.
1. Rear washer motor
2. Grommet

5. Install in the reverse order of removal.
