Rear Wiper Motor

REAR WIPER MOTOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the rear wiper arm and blade.
3. Remove the liftgate trim.

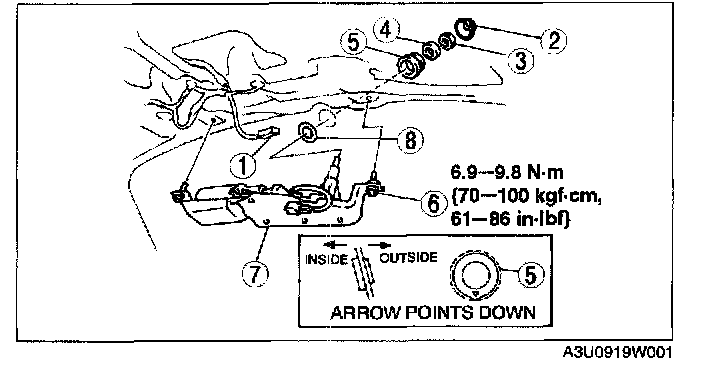

4. Remove in the order indicated below.
1. Connector
2. Seal cap
3. Nut
4. Washer
5. Outer bushing
6. Bolt
7. Rear wiper motor
8. Washer

5. Install in the reverse order of removal.
6. Adjust the rear wiper arm and blade.
