Hatch Back

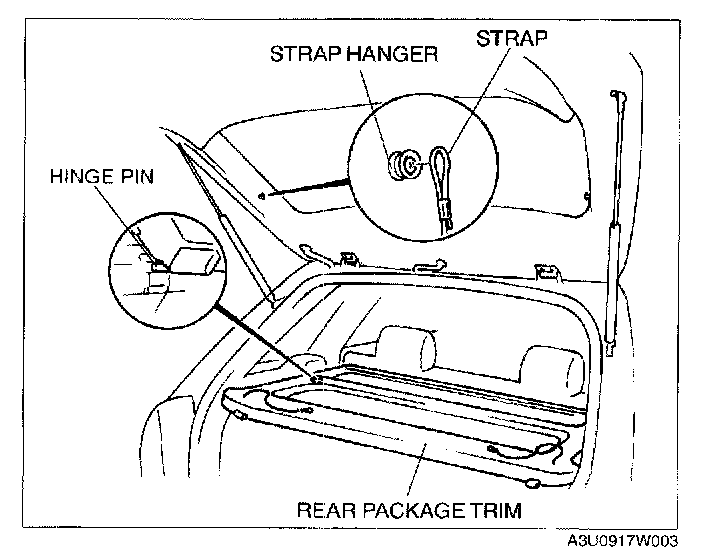

REAR PACKAGE TRIM REMOVAL/INSTALLATION

1. Remove the straps from the strap hangers.




2. Pull the rear package trim, then remove the hinge pin from the trunk side trim.
3. Install in the reverse order of removal.
