Removal & Installation

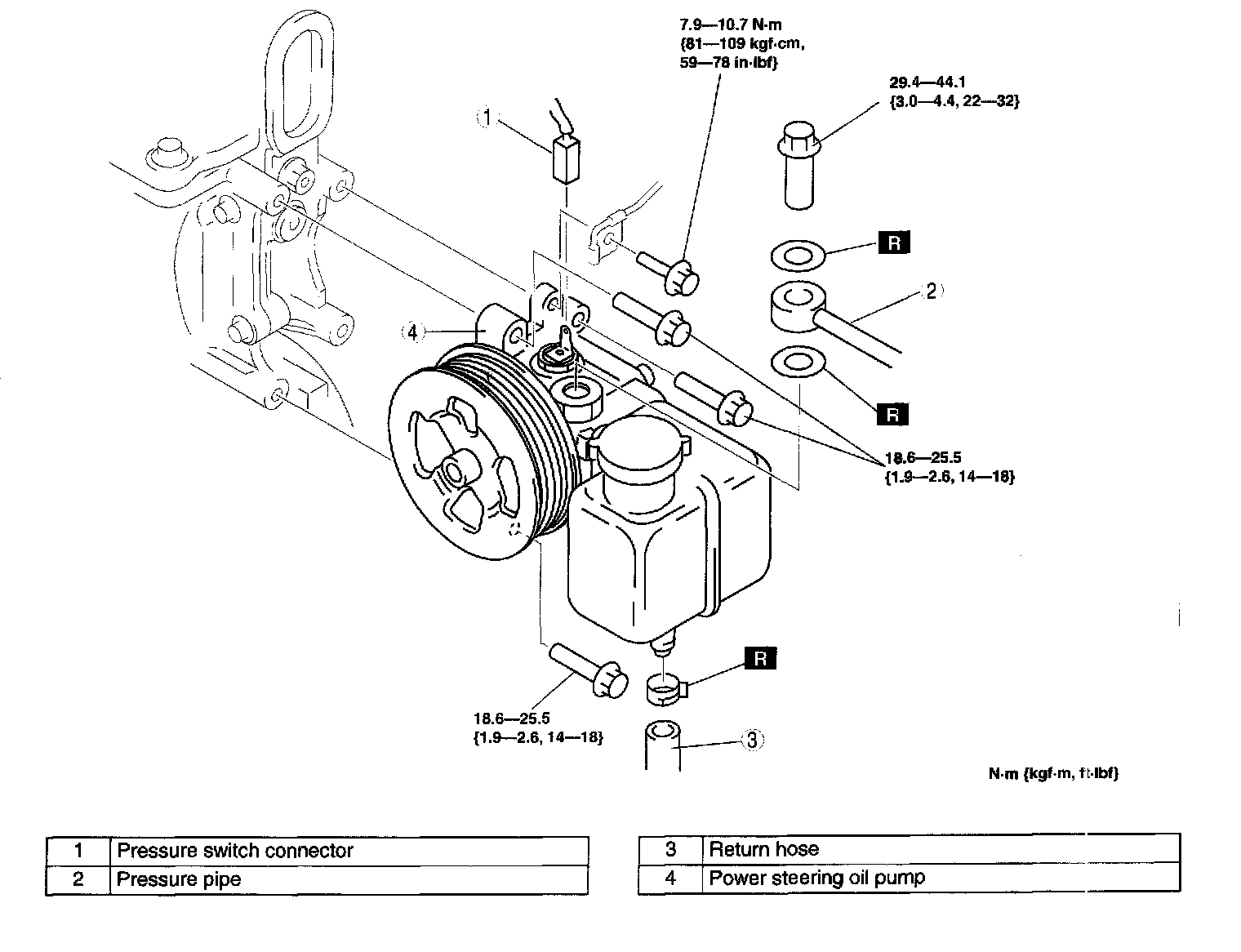

POWER STEERING OIL PUMP (L3) REMOVAL/INSTALLATION
1. Remove the drive belt.
2. Remove in the order indicated in the table.





3. Install in the reverse order of removal.
