Rear Washer Motor [5HB, WGN]

REAR WASHER MOTOR INSPECTION [5HB, WGN]

1. Disconnect the negative battery cable.
2. Remove the front bumper.

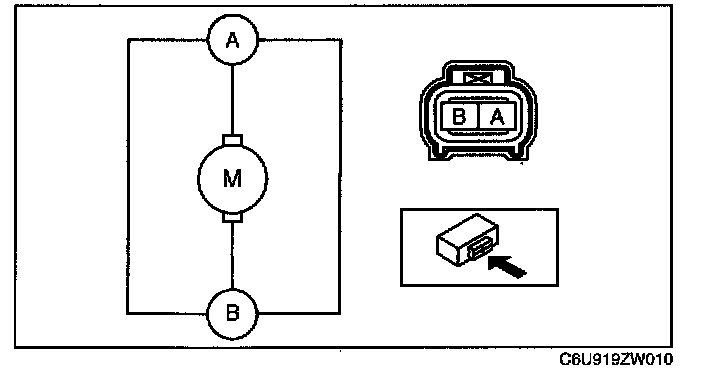

3. Connect battery positive v6itage to the motor terminal B and ground to the motor terminal A.




4. Verify that the rear washer motor operates.
- If the motor does not operate, replace the rear washer motor.
