Amplifier: Service and Repair

AUDIO AMPLIFIER REMOVAL/INSTALLATION

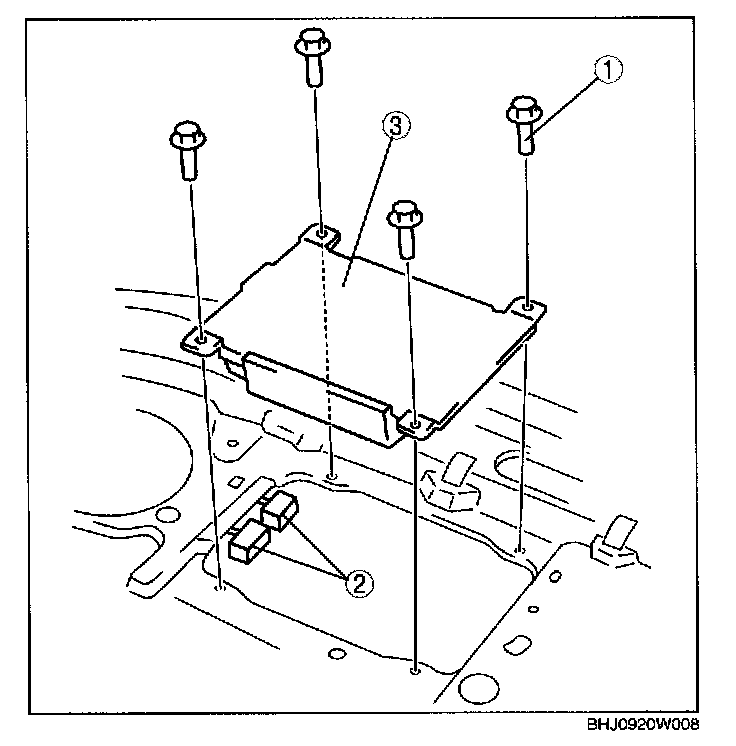

Main Amplifier

1. Disconnect the negative battery cable.
2. Remove the following parts:
1. Console.
2. Rear seat.
3. Tire house trim.
4. Rear pillar trim.
5. Rear package center trim, rear package side trim.

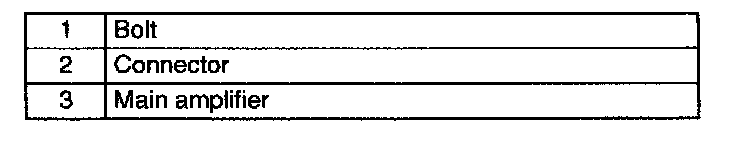

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

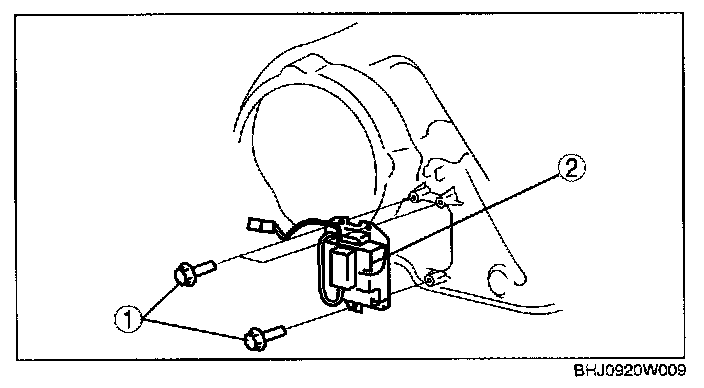

Front Door Speaker Amplifier

1. Disconnect the negative battery cable.

2. Remove the front door trim.
3. Remove the front door speaker.







4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
