Tire House Trim

TIRE HOUSE TRIM REMOVAL/INSTALLATION

1. Remove the rear seat.

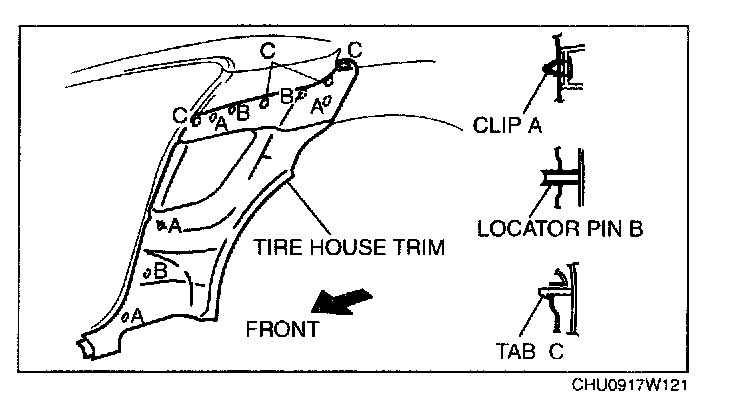

2. Remove the inner scuff plate.
3. Partially peel back the seaming welt.




4. Pull the tire house trim outward and detach clips A and locator pins B.
5. Detach tabs C and remove the tire house trim.
6. Install in the reverse order of removal.
