Vacuum Brake Booster: Service and Repair

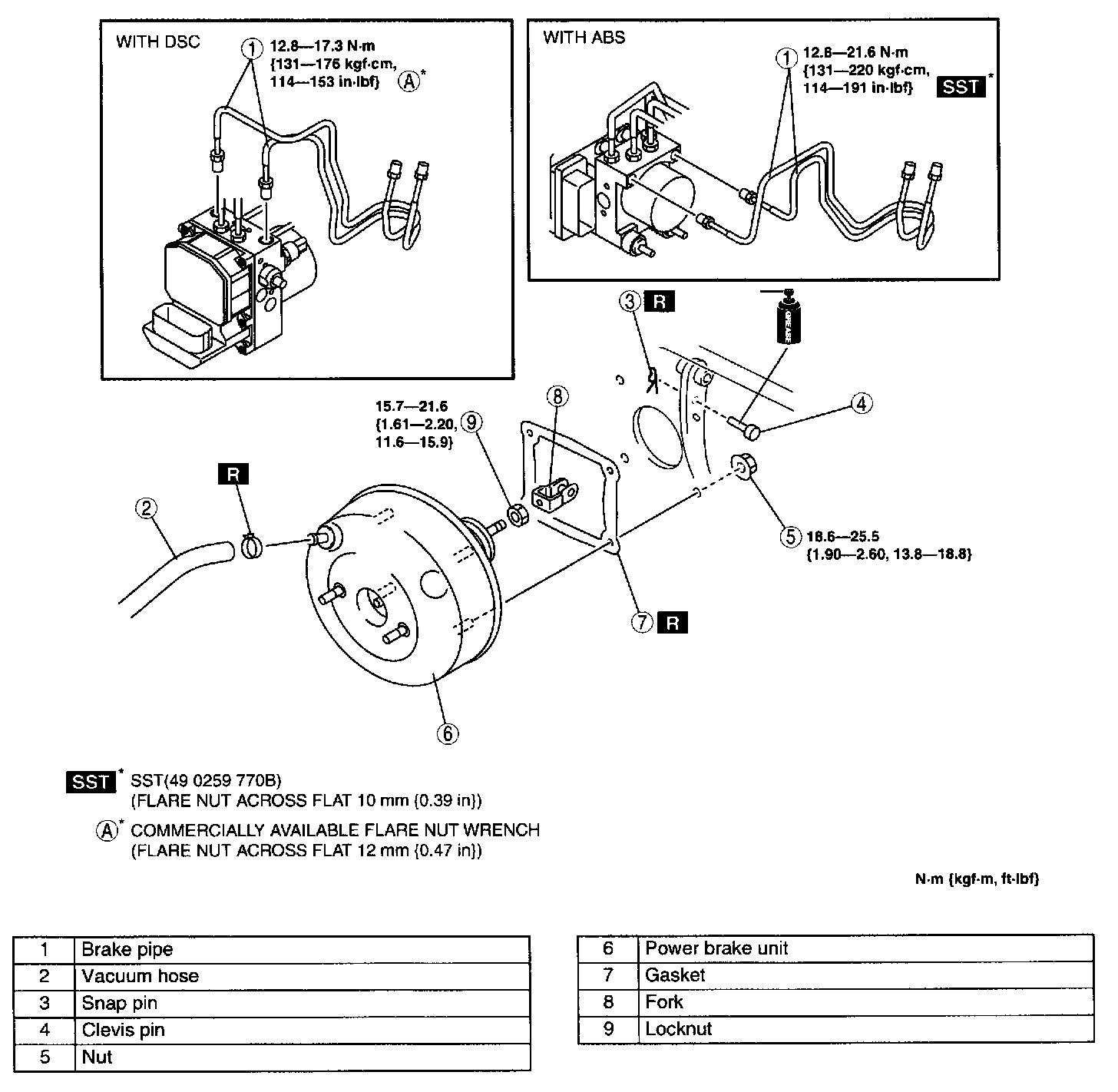

POWER BRAKE UNIT REMOVAL/INSTALLATION
1. Remove the master cylinder.





2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. After installation, perform brake pedal inspection.
