Seat Belt Buckle: Testing and Inspection

FRONT BUCKLE SWITCH INSPECTION

Driver-Side
1. Disconnect the negative battery cable.
2. Disconnect the buckle switch connector.

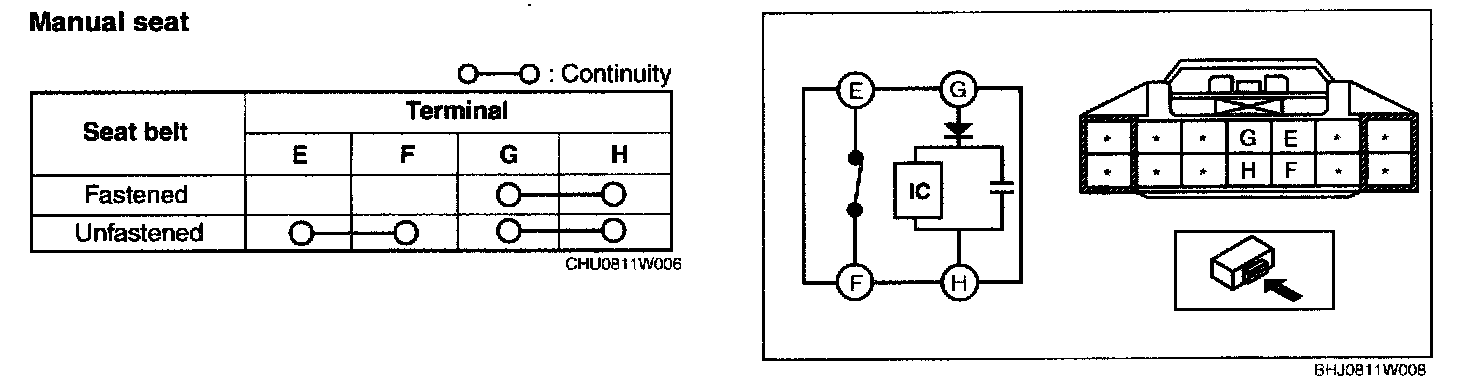

3. Verify continuity as indicated in the table.
- If not as indicated in the table, replace the front buckle.

Passenger-Side
1. Disconnect the negative battery cable.
2. Disconnect the buckle switch connector.

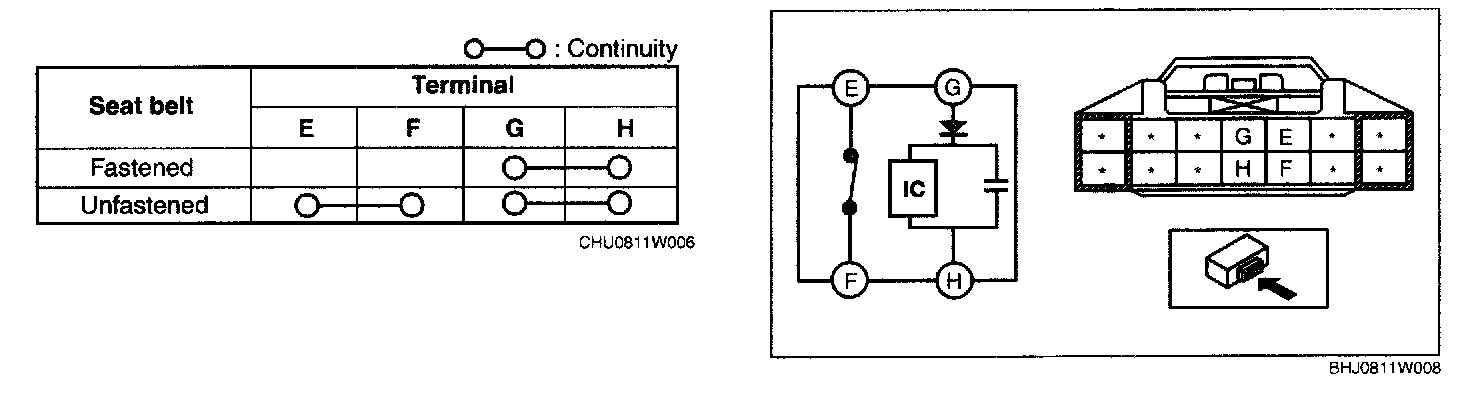

3. Verify continuity as indicated in the table.
- If not as indicated in the table, replace the front buckle.
