Rear Buckle

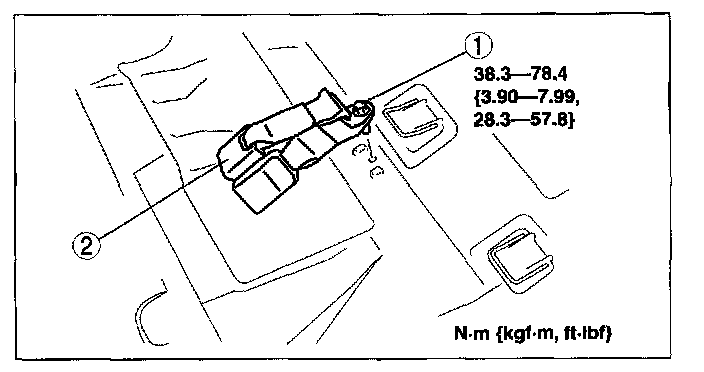

REAR BUCKLE REMOVAL/INSTALLATION

1. Remove the rear seat cushion.

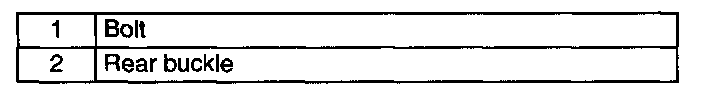

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
