Power Steering Pump: Service and Repair

ELECTRIC POWER STEERING OIL PUMP REMOVAL/INSTALLATION
1. Remove the under cover, splash shield and mudguard.
2. Remove the washer tank.

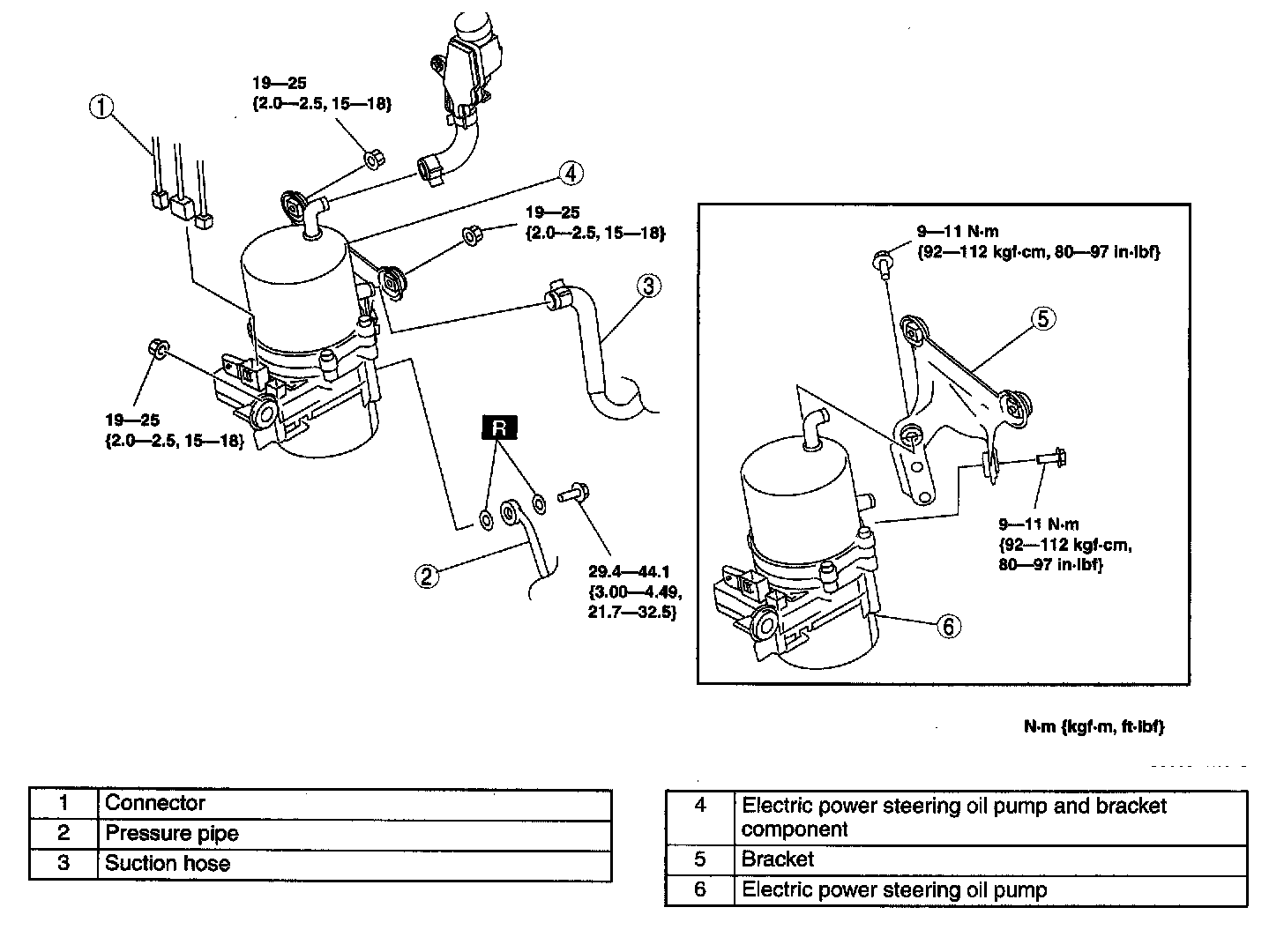

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.





5. After installation, perform the configuration procedures for the EHPAS control module.

Programming and Relearning
