Front Buckle

FRONT BUCKLE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the front seat.

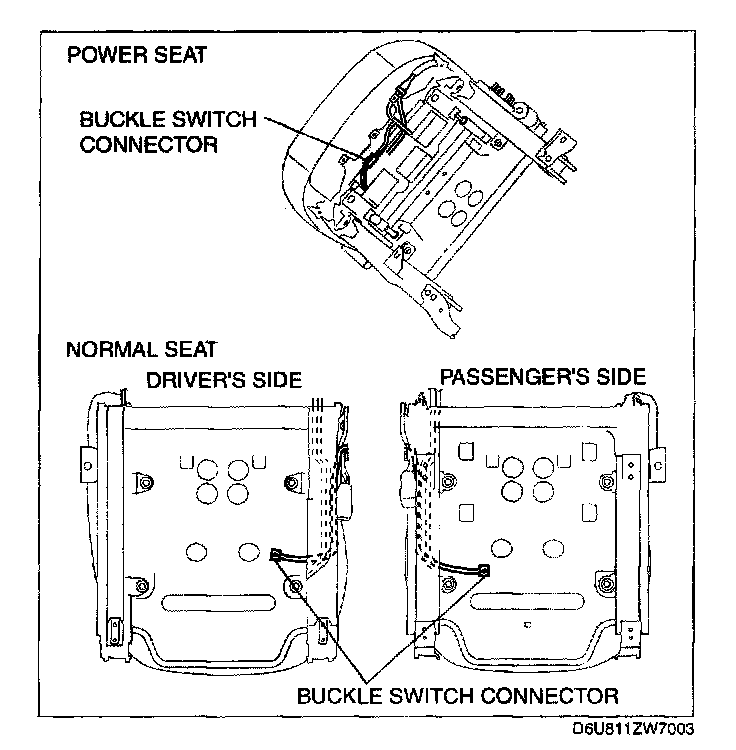

3. Disconnect the buckle switch connector.




4. Remove bolt.
5. Install in the reverse order of removal.
