Blower Motor: Testing and Inspection

BLOWER MOTOR INSPECTION




1. Disconnect the blower motor connector.

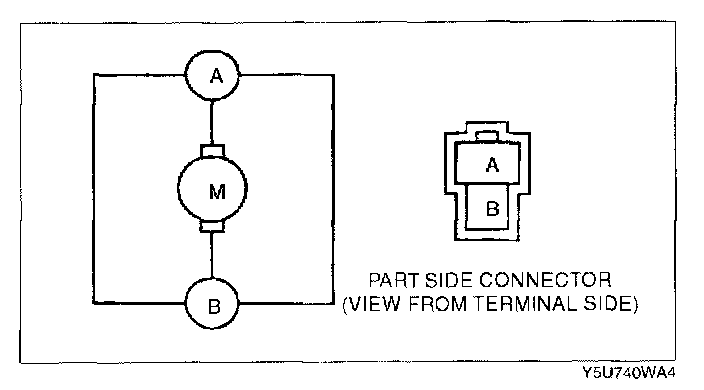

2. Connect B+ to terminal A and ground to terminal B of the blower motor, and verify its operation.
- If the blower motor does not operate, replace the blower motor.
